Metal shell, DC type, 8mm detecting distance, 3 wire system.
Power supply inverted connecting protection, short circuit protection, non-contact detecting device.
When proximity switch is close to some target object, it will send out control signal.
Used widely in the machine tool industry, frequency counters and other automatic control system.
Metal shell, DC type, 8mm detecting distance, 3 wire system.
Power supply inverted connecting protection, short circuit protection, non-contact detecting device.
When proximity switch is close to some target object, it will send out control signal.
Used widely in the machine tool industry, frequency counters and other automatic control system.
This Inductive Proximity Switch is widely used in automatic control industry for detecting, controlling, and noncontact switching. When proximity switch is close to some target object, it will send out control signal.
Also can be used in machine, paper making, light industry for limiting station, orientation taking count, speeding trial ect.

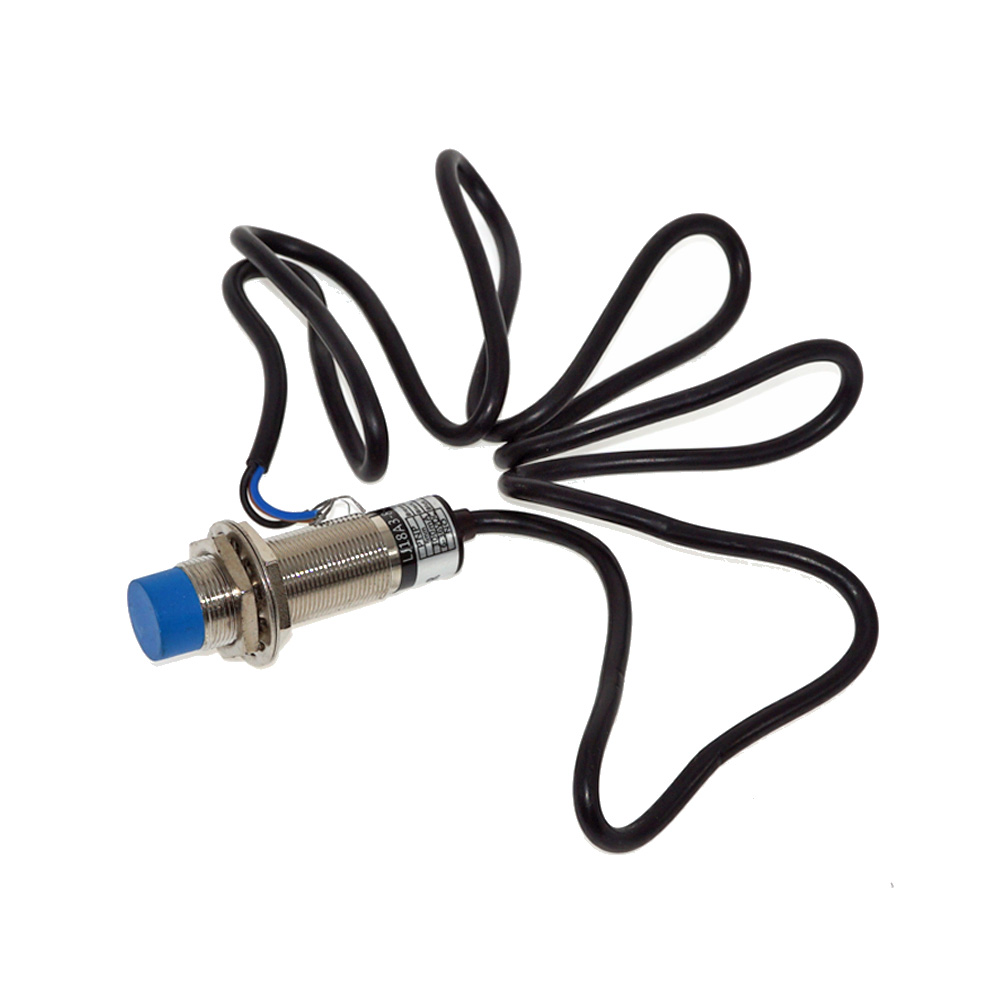

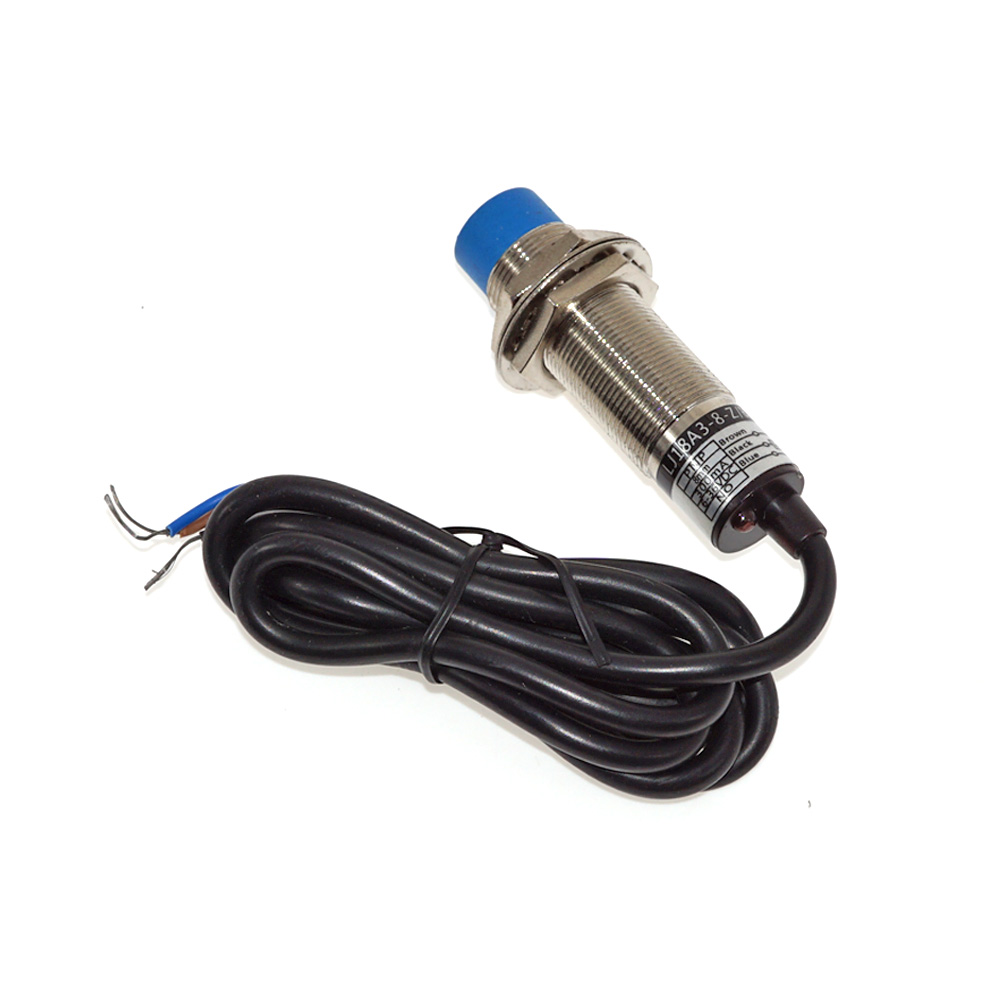

Model: LJ18A3-8-Z/BX
Wire Type: Cylindrical DC 3 Wire Type (Black, Brown, Blue)
Switch Appearance Type: Cylinder Type
Theory: Inductive Sensor
Output Type: NPN NO(Normal Open)
Supply Voltage: DC 10-30V
Current Output: 200mA
Diameter of Head: approx.18mm
Detecting Distance: 8mm
Detect Object: Magnetic metal
External Material: Plastic, Alloy
Operating Temperature: -30°C to +65°C (Non-freezing Condition)
Size: 6.5 x 3cm /2.56″ x 1.18″ (L x Max. Dia)
Cable Length: 117cm/46″
Weight: 85g
