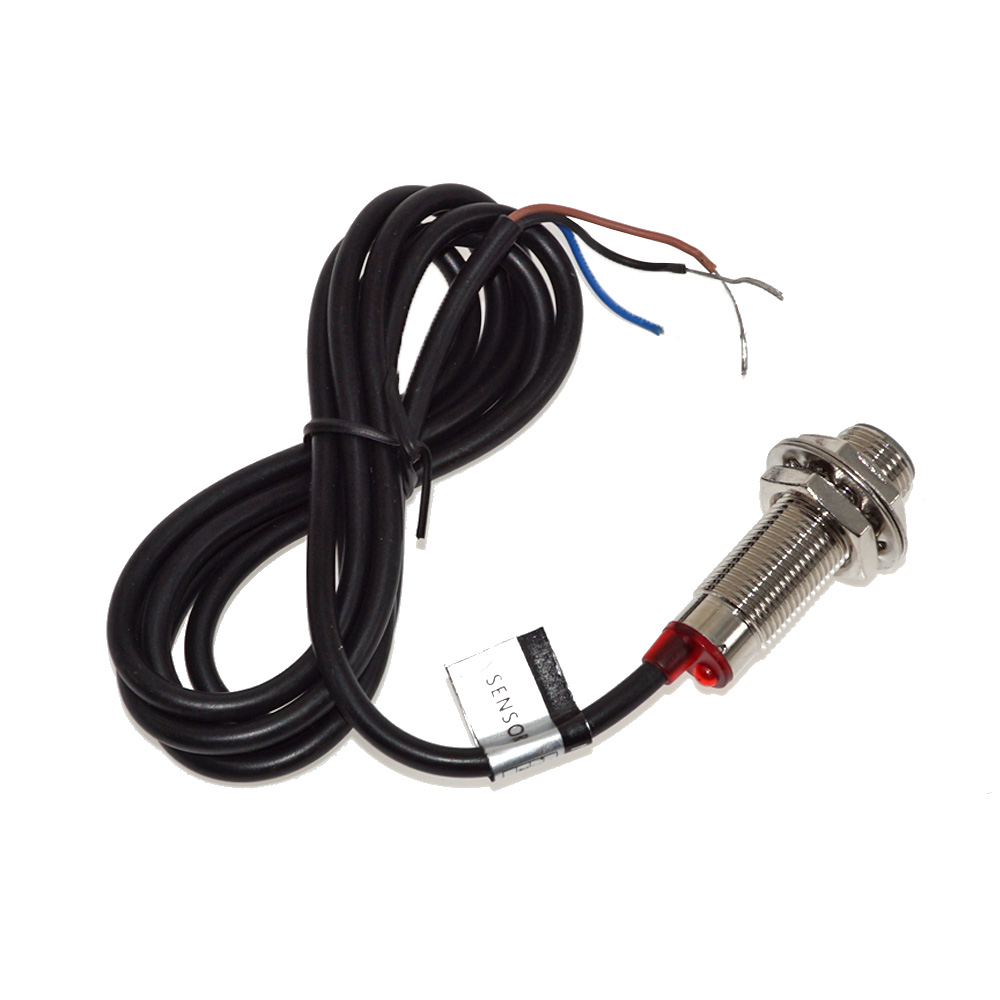

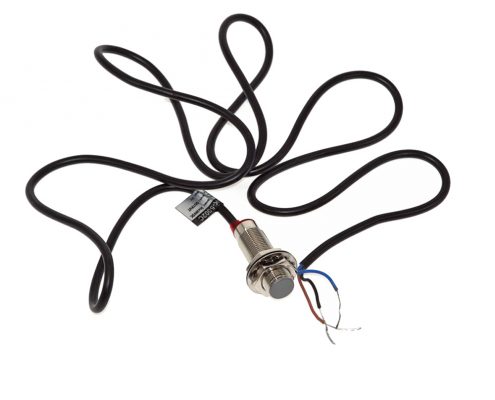

Hall Effect Sensor Inductive Proximity Switch – OKY3281

Product Model: OKY3281

NPN 10mm NJK-5002C Hall Effect Sensor Inductive Proximity Switch

Product Description

This Hall NPN sensor consists of voltage regulator,voltage
generator,difference amplifier, trigger and open collector output,it is input are the magnetic induction, the output is a digital voltage signal.
-Wide supply voltage range
-High frequency
-Long life,small volume,convenient installation
-Can directly connect the transistor and TTL,MOS and so on logic circuit

Send Inquiry

Chat Online

Call on Whatsapp

Share This Product

Product Details

Product Description

This Hall NPN sensor consists of voltage regulator,voltage
generator,difference amplifier, trigger and open collector output,it is input are the magnetic induction, the output is a digital voltage signal.
-Wide supply voltage range
-High frequency
-Long life,small volume,convenient installation
-Can directly connect the transistor and TTL,MOS and so on logic circuit

Product Features

Type: NJK – 5002C
Appearance: M12mm cylinder
Output: NPN three wire normally open type
The detection distance: 10 mm
Supply voltage: 5-24VDC,6-36VDC
Output current: 200 mA
Objects can be detected: permanent magnets
Switching frequency: 320 KHZ
The shell material: copper
Wiring:brown-Power+,blue-Power-,black-signal
