Product Model:OKY3484

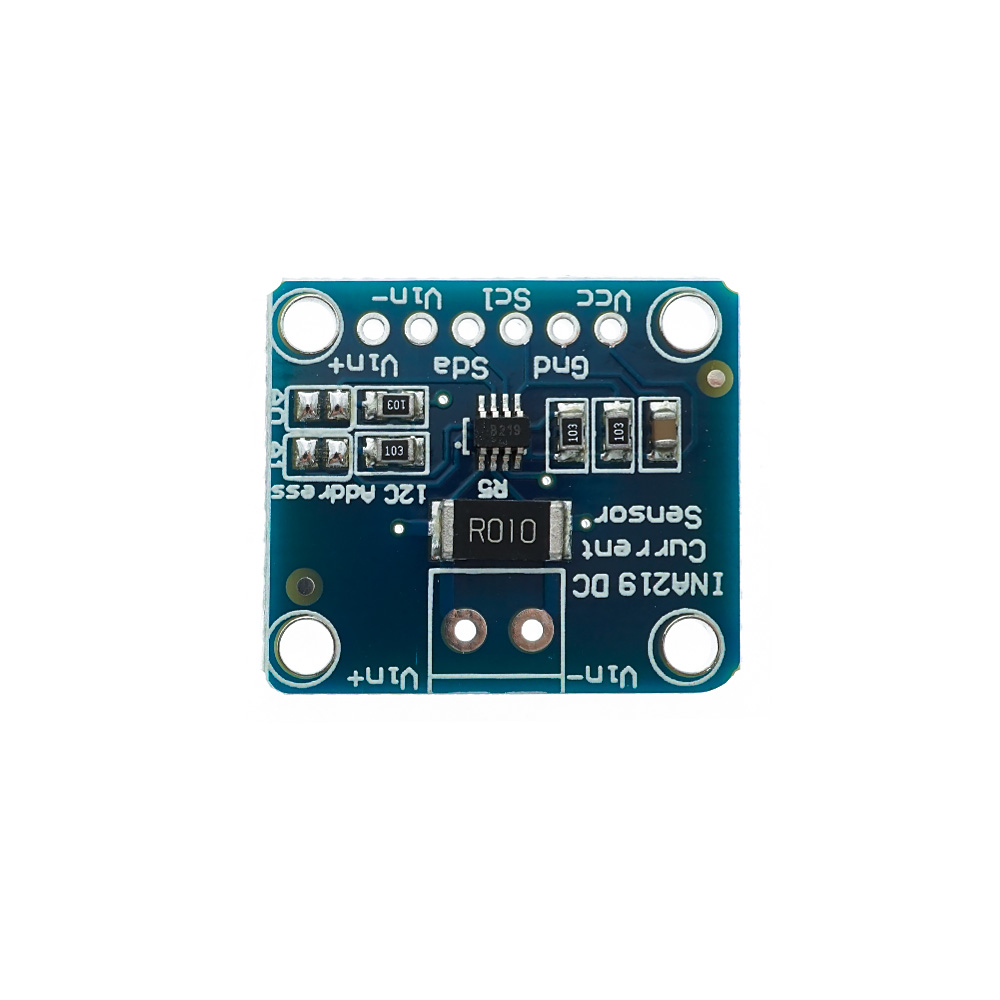

INA219 I2C Bi-directional DC Current Transducer Power Supply Sensor Breakout Module

Product Description

100% Brand New & High Quality

Specifications:
Bus Voltage Range:0 V- 26V
Working Voltage:3~5V
Operating temperature:-40c – 85c
Size:25.5 x 22.3mm
Application:
Measure high side voltage and DC current draw,great for tracking battery life or solar panels.
Perfect for your solar or battery powered UNO project.
Used for I2C port zero drift / bidirectional current / power monitoring sensor module.
Note:Requires soldering of header pins (easy!)

Call on Whatsapp

Share This Product

Product Details

Product Description

Description:

100% Brand New & High Quality
Features:
1.NA21 can be achieved within the maximum error accuracy 85C temperature range from -40C to + 1% , the maximum offset is 100 uV.
2.The high-precision products combine the advantages of 12-bit resolution.
3.This module can be sensed bus voltage range is 0 V to +26 V.
4.The programmable calibration register reads the current directly in amperes and reads the power in watts.
5.Up to 128 samples can be averaged for filtering in noisy environments.
6.The I2C interface has a time-out setting that not only avoids the bus lockout, but also provides a high-speed mode to meet communication requirements up to 3.4 MHz.
7.All features of the INA219 are software-programmable.

Package Include:

1 x INA219 DC Current Monitor Kit
