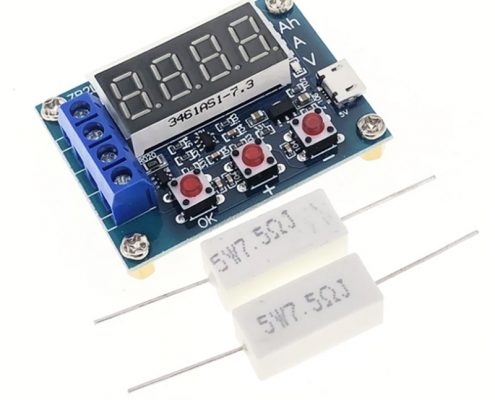

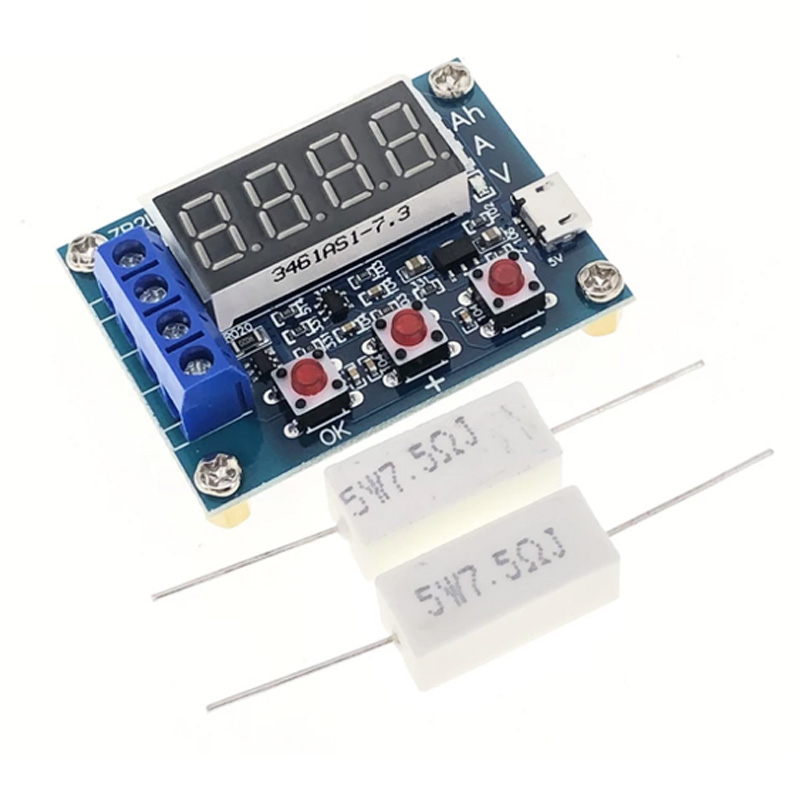

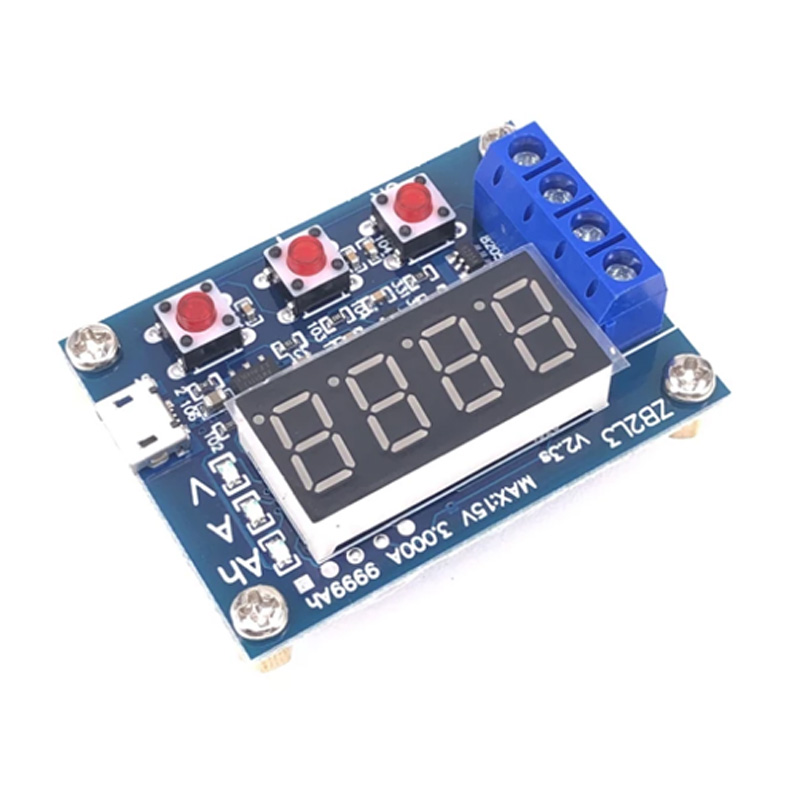

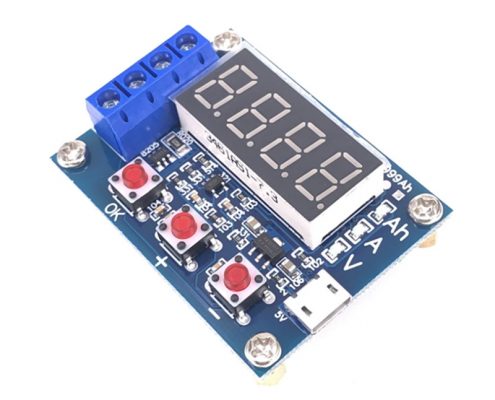

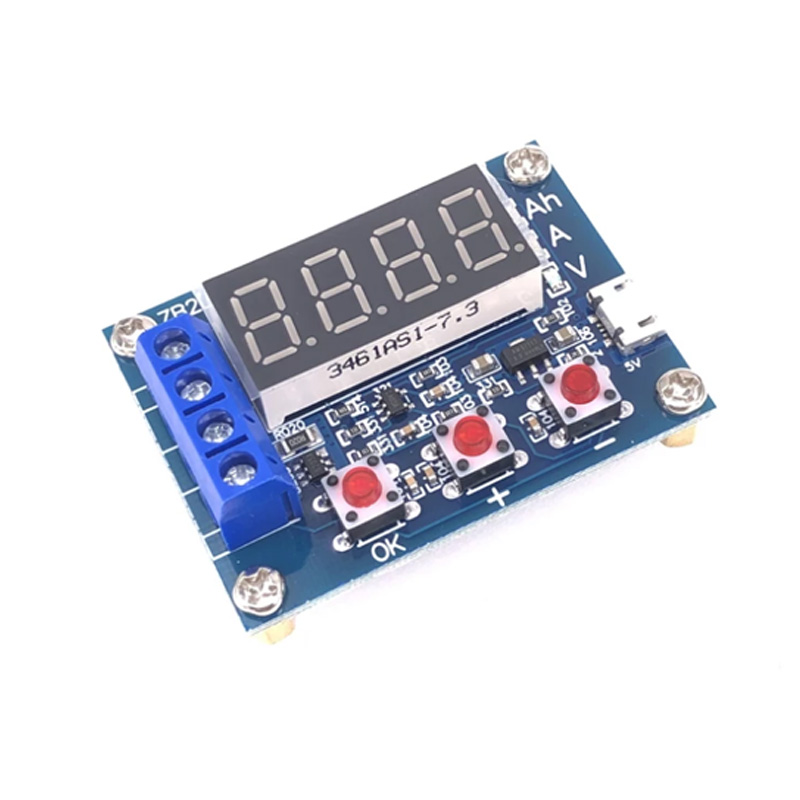

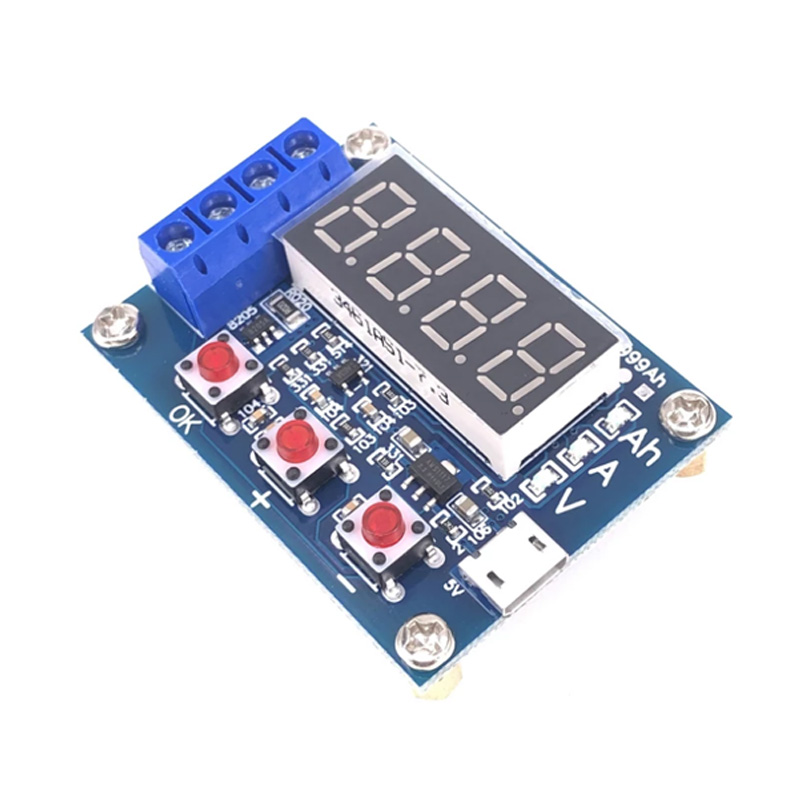

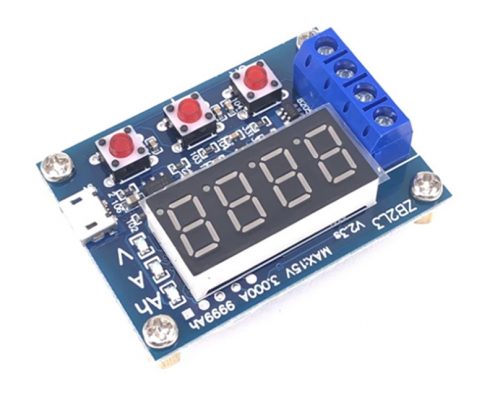

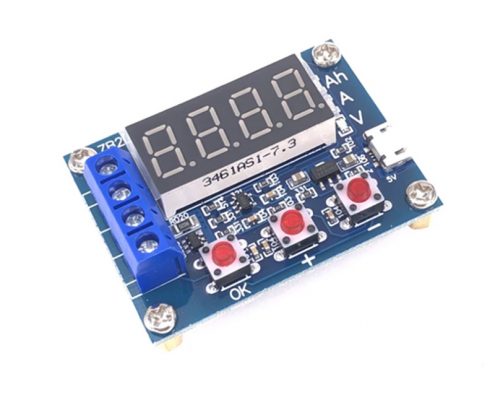

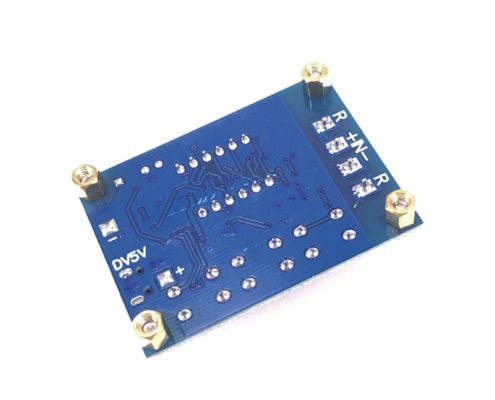

ZB2L3 18650 Capacity Meter Discharge Tester

Product Model:

OKY3605

1.2-12v External Load Discharge Battery Equal Capacity Test 18650 Battery Capacity Tester ZB2L3

Product Description

1. Recyclable, environmentally friendly recycling
2. The structure is clear and easy to use
3. Breadboard can be assembled in fixed units
Uses: experiment, test, robot

Send Inquiry

Chat Online

Call on Whatsapp

Share This Product

Product Details

Product Description

1.Power supply voltage: DC4.5-6V (micro USB interface)

2.Working current: no more than 70mA

3.Discharge voltage: 1.00V-15.00V, resolution 0.01V

4.Termination voltage range: 0.5-11.0V

5.Support through current: no more than 3.000A, resolution 0.001A

6.Voltage measurement error: less than 1%+0.02V

7.Current measurement error: less than 1.2%+-0.002A

8.Battery capacity range: 9999Ah (1Ah=1000mAh) when the value is large, the decimal point is shifted and switched, when it is lower than 10Ah, it is displayed as X.XXX, when it reaches 10Ah, it is displayed as XX.XX, and so on.

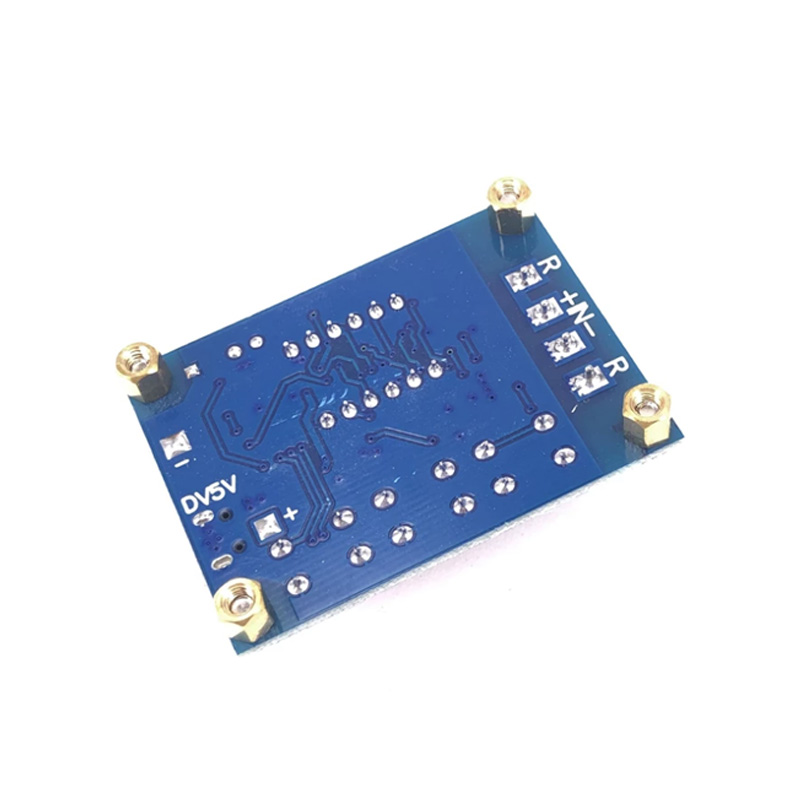

9.Circuit board size: 50mmX37mm

10.Finished product size: 50mmX37mmX17mm (length X width X height, including copper foot height)
