产品型号:
OKYN-G7316
TPA3116 Subbwoofer Amplifier Board 80Wx2+100W 2.1 Channel Digital Power Amplifier Audio Board NE5532 OP Amp Preamplifier
Product Description

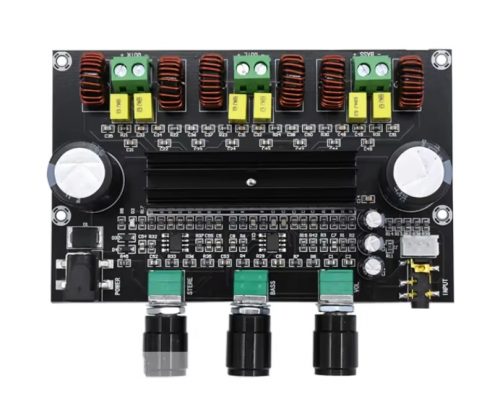

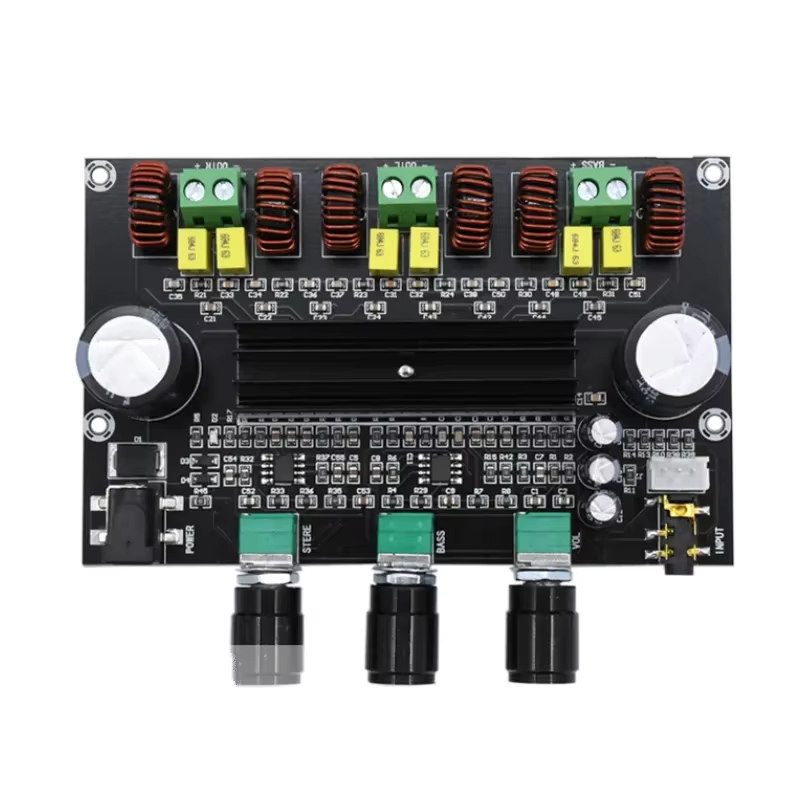

The power amplifier board utilizes two TDA3116D2 chips as its core: one for left and right channel power amplification, one for bridge-connected subwoofer driving, and two NE5532 audiophile amplifiers for current control and low-pass filtering.
A redesigned low-pass filter provides enhanced subwoofer thrust and offers a wide range of adjustment options, including adjustable subwoofer volume and left and right channel volume. This eliminates issues such as no-load heating, power-on/off clatter, floor noise, and low bass.
Using Sakamoto ELNA audio-specific capacitors, ruby capacitors, and high-precision, fully sealed potentiometers, the overall layout is streamlined, resulting in compact size, high efficiency, and high power.
Product Details
Product Specifications:
Product Name: 2.1-Channel Audio Amplifier Board
Power Supply: DC12-26V (DC24V recommended)
Current: ≥3A
Output Power: 80W*2 + 100W (Subwoofer)
Output Impedance: 4-8 ohms
Frequency Response: 14-100kHz
Signal-to-Noise Ratio: 100dB
Number of Channels: 3 (Left + Right + Subwoofer)
Switching Frequency: 1.2MHz
Board Dimensions: 116*74*29mm

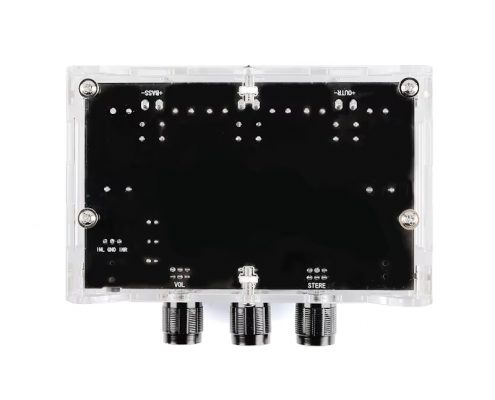

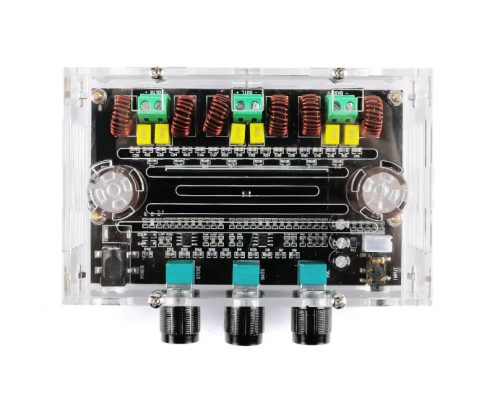

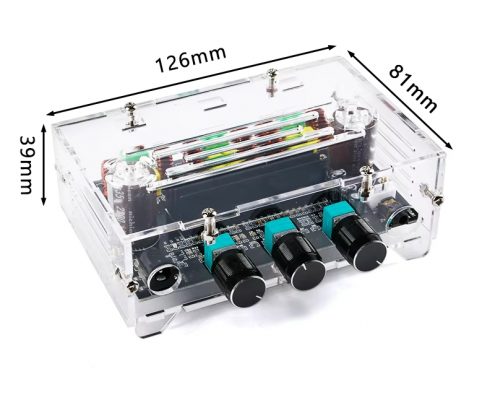

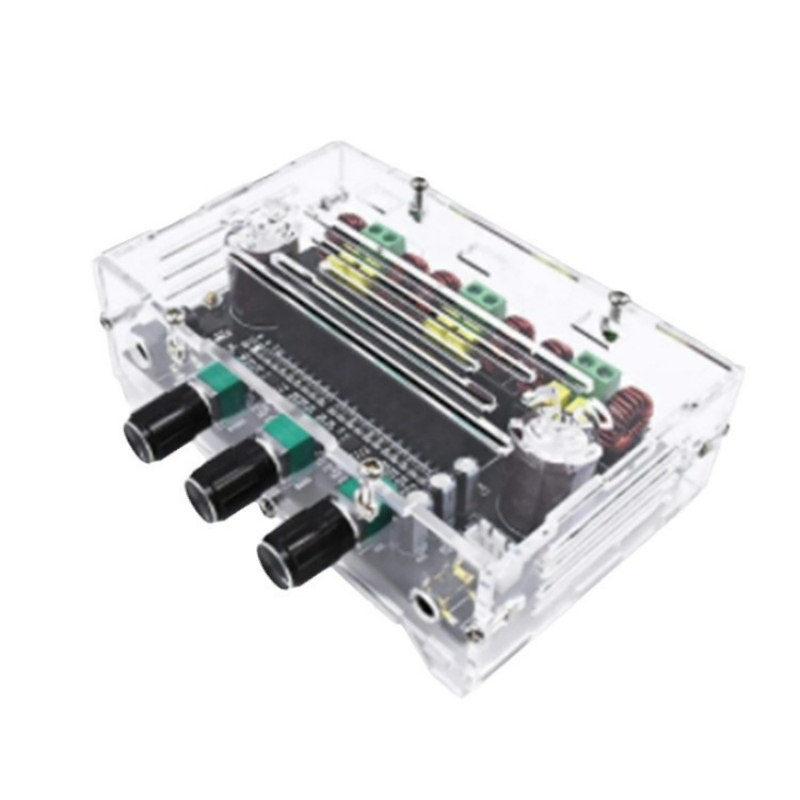

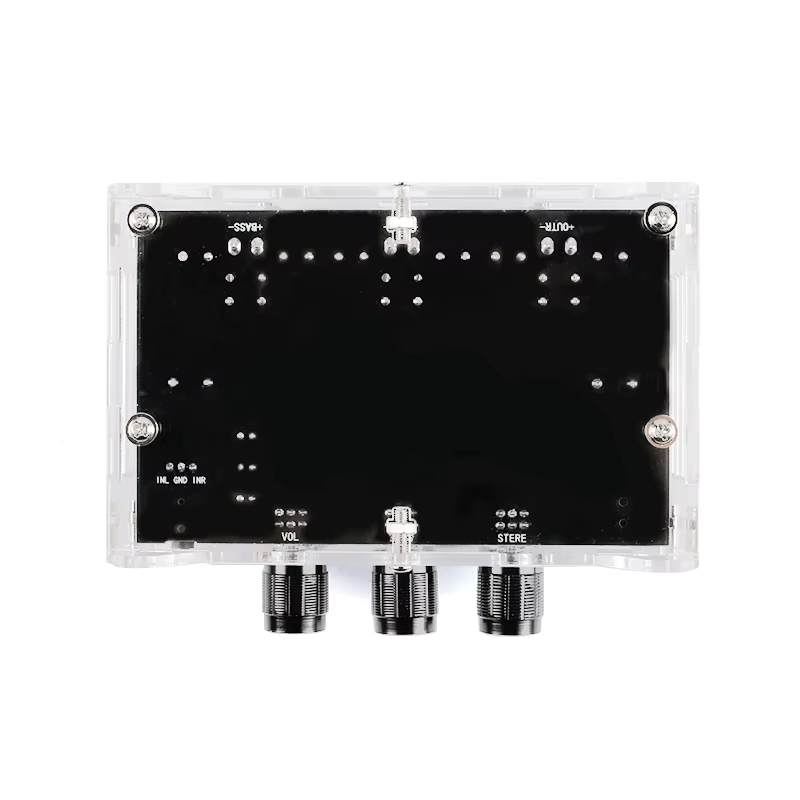

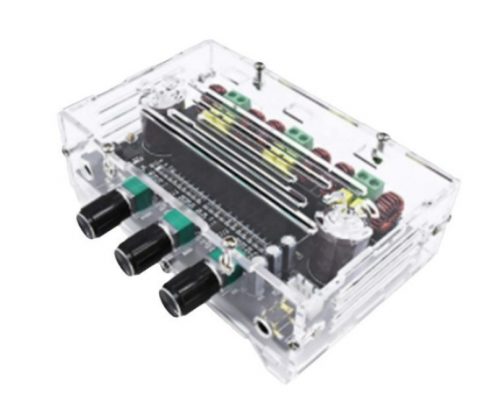

Dimensions with Case: 125.88*80.78*44.65mm
Package Includes:
1 x 2.1-Channel Audio Amplifier Board
Different package at optional:
1. Bulking Packing:Plastic Bag Package
2. Customized Retailing Box package with your company information ( Order > 3000PCS)
