Temperature And Humidity Module — OKN423-9

Product Model:OKN423-9

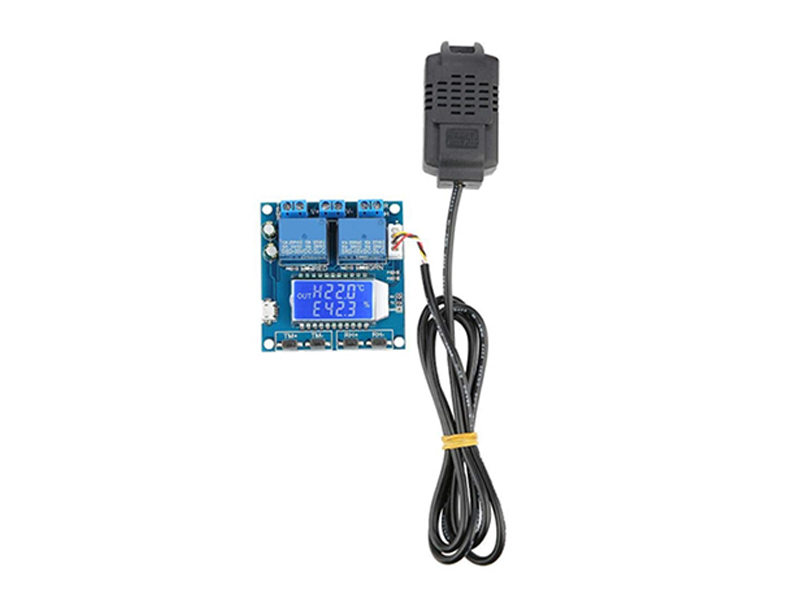

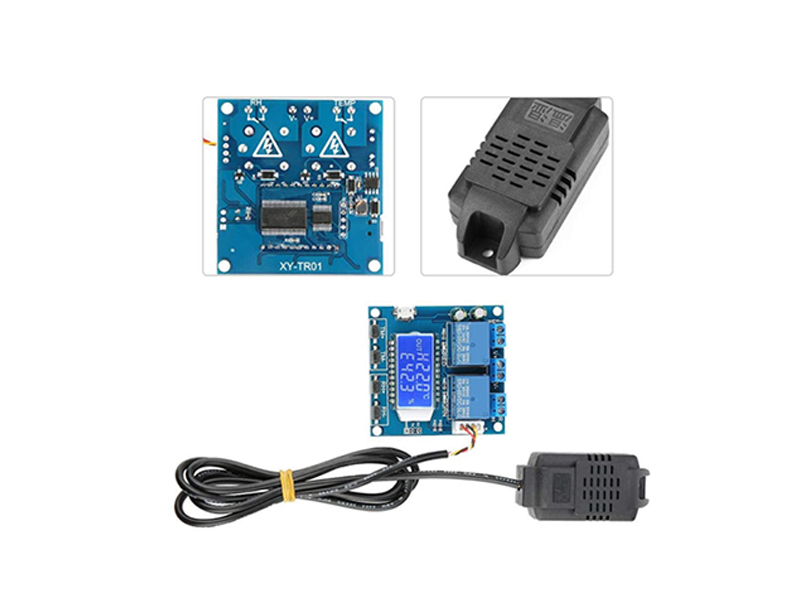

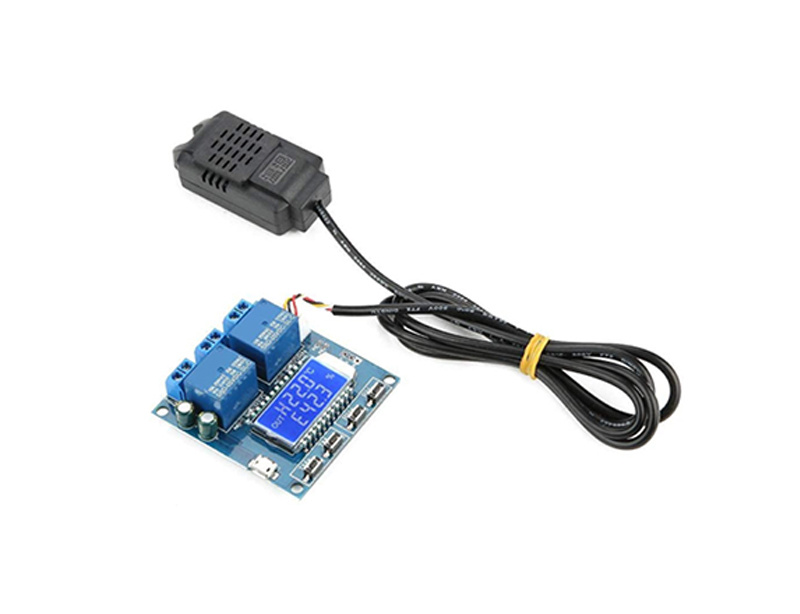

DC 12V XY-TR01 Digital Thermostat Temperature and Humidity Controller Module

Product Description

1.Model:XY-TR01

2.Temperature Range: -20 To 60℃

3.Humidity Range: 0% To 100%

4.Control Probe:Integrated sensor

5.Output Type: Relay output

6.Size: 57*60*20MM/2.2*2.4*0.8in

Send Inquiry

Chat Online

Call on Whatsapp

Share This Product

Product Details

Product Description

Specification:

1.Model:XY-TR01

2.Temperature Range: -20 To 60℃

3.Humidity Range: 0% To 100%

4.Control Probe:Integrated sensor

5.Output Type: Relay output

6.Size: 57*60*20MM/2.2*2.4*0.8in

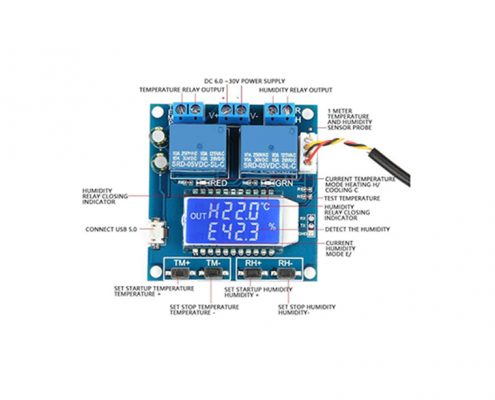

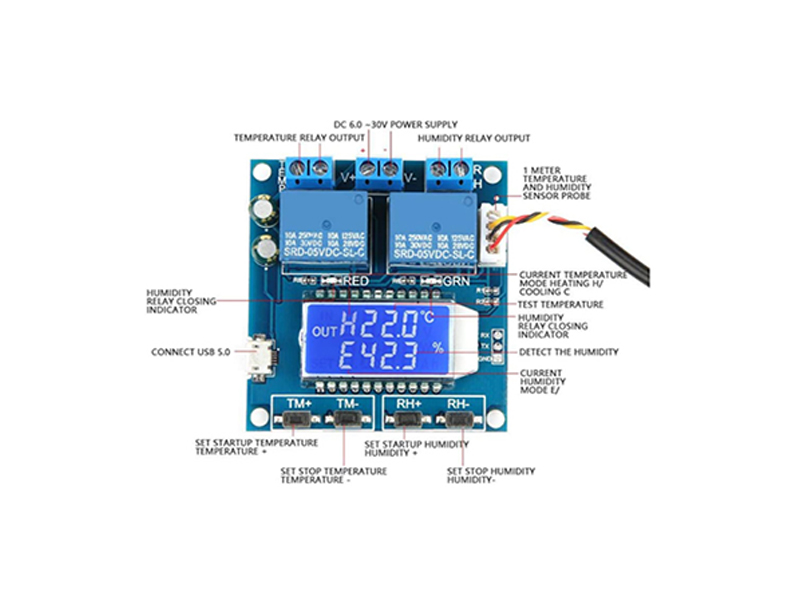

How to modify temperature/Correction of humidity:

In the running interface,Double click”TM+”key Enter the correction value setting interface, downlink display correction value type, uplink display specific value;OFE Temperature correction value RH Humidity correction value)
By passing short Click”TM”Key, toggle the parameters to be modified, through RH+ RH-Key, modify specific value; support long press short press;
When the parameters are modified,Double click”TM+”The key is to exit the correction value and set up the interface and save the data.

How to open it/Turn off relay enable switch:

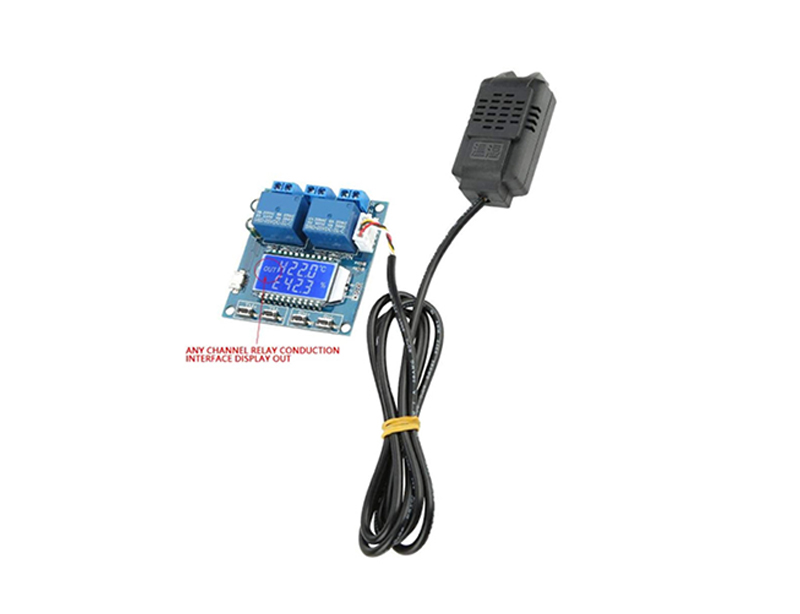

1.In the running interface, short press”TM-“Key, open or close temperature Relay enable(on: open up OFF: shut down)After returning to the operating interface, if the temperature relay is in a closed state, the temperature symbol & lsquo; & rsquo; flashes to indicate a warning.

2.In the running interface, short press”RH-“Key, open or close humidity Relay enable(on: open up OFF: shut down)After returning to the running interface, if the humidity relay is turned off, the humidity symbol”%”flicker, as a reminder.

3.Serial port control(single chip microcomputer)TTL Level communication)

4.Communication standard:9600bps

5.Data bit :8

Package Included:
1pc*Temperature And Humidity Module
