1.Relative humidity and temperature integrated measurement
2.Accurate dew point measurement
3.Full-scale calibration, without re-calibration can be used interchangeably
4.Two-wire digital interface (the most simple system integration, lower prices)
5.Self-test capability with the humidity sensor element
Description:
1.Relative humidity and temperature integrated measurement
2.Accurate dew point measurement
3.Full-scale calibration, without re-calibration can be used interchangeably
4.Two-wire digital interface (the most simple system integration, lower prices)
5.Self-test capability with the humidity sensor element
Feature:
1.Measuring range: 0 to 100%RH
2.Humidity measurement accuracy: ±4.5%RH (20% to 80% RH)
3.Humidity Measurement Resolution: 0.03%RH
4.The temperature measuring range: -40 To +123.8 Celsius
5.Temperature measurement accuracy: ±0.5Celsius at 25 Celsius ; ±0.9Celsius (0 to 40Celsius)
6.Temperature response time: ≤ 20 seconds
7.Temperature measurement repeatability: ±0.1Celsius
8.Temperature Measurement Resolution: 0.01Celsius
Package included:

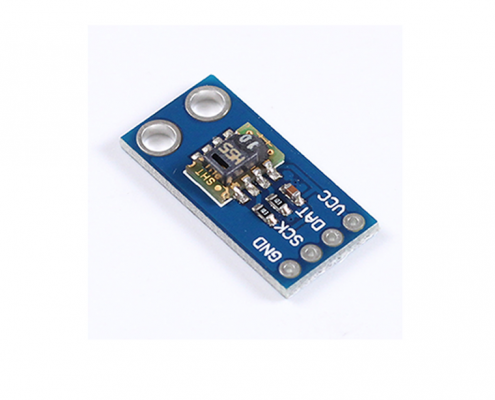

1pc* SHT10 Temperature Module
