NRF24L01+ 2.4GHz Wireless Transceiver Module-OKY3361 – OKYSTAR

OKY3361

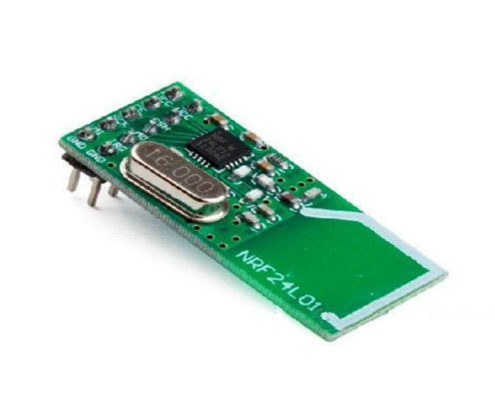

NRF24L01+ 2.4GHz Wireless Transceiver Module

Product Description

*Module Type: Wireless

*Voltage: 3-3.6V (recommended 3.3V)

*Maximum output power: +20dBm

*Emission mode current(peak): 115mA

*Receive Mode Current(peak): 45mA

*Power-down mode current: 4.2uA

*Weight: 5.00g

*Board Size: 2.9 x 1.5 x 1.2cm

*Operation Level: Digital 3.3V

*Power Supply: External 3.3V

Call on Whatsapp

Share This Product

Product Details

Product Description

Description:

Maximum operating speeds up to 2Mbps- GFSK modulation efficiency- Anti-interference ability- Particularly suitable for industrial control applications.
125 Channels- Multi-point communication and frequency hopping to meet the communication needs.
Built-in hardware CRC error detection- Multipoint communication address control.
Low-power 1.9 ~ 3.6V- only 1uA on Power down mode.
Built-in 2.4Ghz antenna.
Available software to set the address- only received local Address when output data(Provide interrupt instruction)- can be directly connected to a variety of microcontrollers- Software programming is very convenient.
Built-in voltage regulator.
Standard DIP Pitch Interface for embedded applications.
Size:3.3cm x 1.4cm – 1.29inch x 0.56inch.
