MAX7219 dot matrix module ( Single )-OKY3527 – OKYSTAR

OKY3527

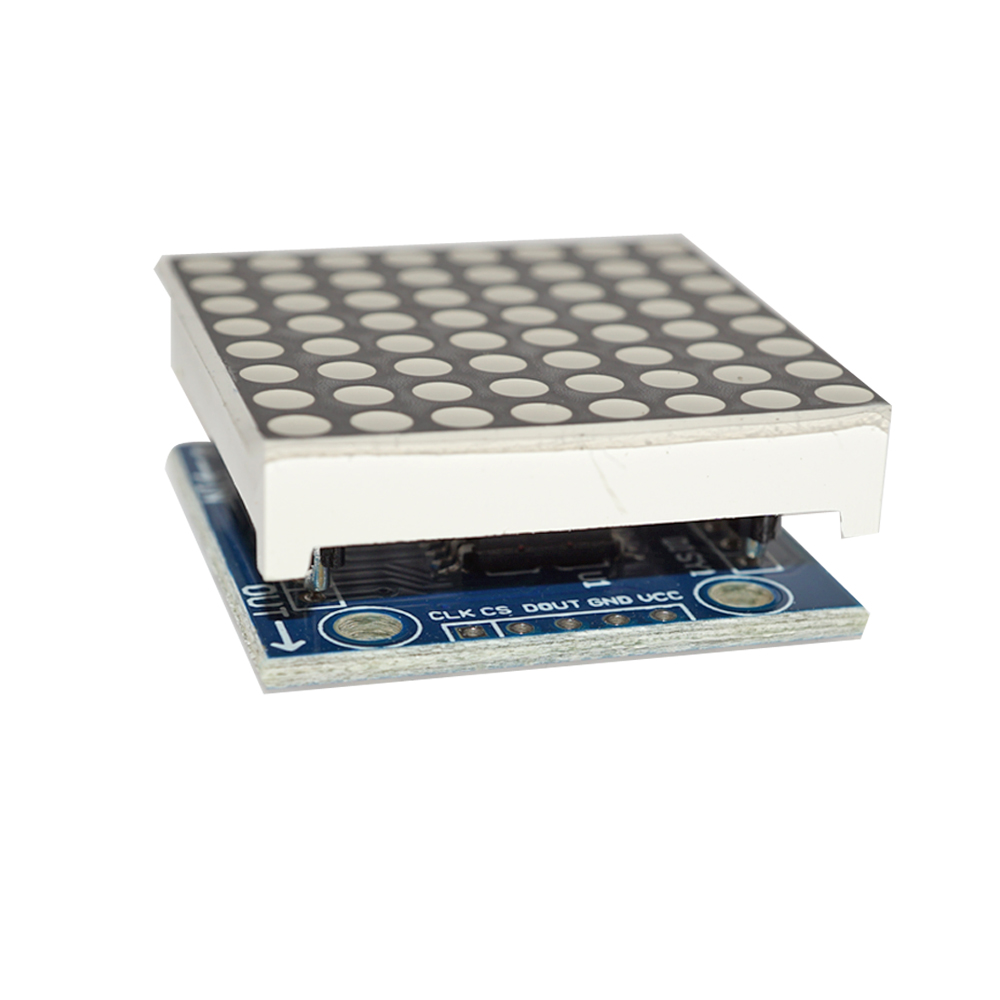

MAX7219 dot matrix module ( Single )

Product Description

100% Brand New & High Quality

Need only three IO port to drive a dot! No flicker when the dot matrix display! Support cascade!

Module parameters:

A single module can drive a 8×8 dot matrix common cathode
Module Operating voltage: 5V
Module Size: Length 3.2 cm X 3.2 cm wide and 1.3 cm high X
With 4 fixing screw holes, diameter 3mm
module with input and output interfaces, support for cascading multiple modules

Call on Whatsapp

Share This Product

Product Details

Product Description

Description:
1. Single module can drive an 8 * 8 dot matrix common cathode
2. Module Operating voltage: 5V
3. Module dimensions: length 3.2 cm X 3.2 cm wide X 1.3 cm high
4. Holes with four screws, diameter 3mm
5. Modules with input and output interfaces, support for cascading multiple modules
Wiring instructions:
1. On the left block to an input port, an output port on the right
2. When the control of a single module, simply enter the port received a CPU
3. When more than 3 modules cascaded output input termination CPU, the input output termination module of the first two modules of the first one, the first two modules of the termination input terminal of the three modules, and so on

To 51 single example:
VCC → 5V
GND → GND
DIN → P2.2
CS → P2.1
CLK → P2.0
