Description:

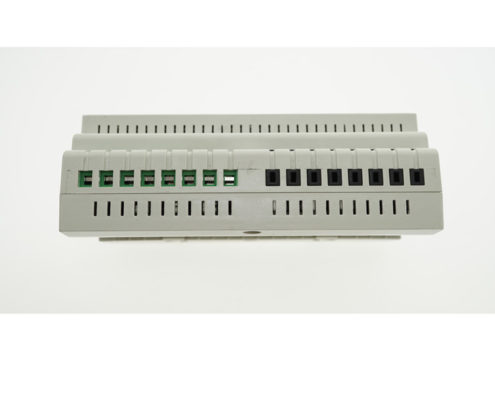

The DIN-DM4 is a 4-channel universal lighting control module
Designed to support dimming of both forward and reverse phase type loads.
A single model supports 4-Way 1.5A Dimming, Each channel Can Control 330W Load Independently , 2channel Or More channel Combining Power Output At Optional, Maximum 6A (1300W) Combining Output.
NET ID: (3) 7-Segment green LED digits and (2) miniature pushbuttons for setting DC-NET ID; digits also display output levels
PWR: (1) Green LED, illuminates when DC power is applied to the NET port
NET: (1) Yellow LED, indicates communication with the control processor
RESET: (1) Recessed miniature pushbutton, resets internal processor
LOADS 1 – 4: (8) Red LEDs and (8) miniature pushbuttons for status indi-cation and local control of each channel
