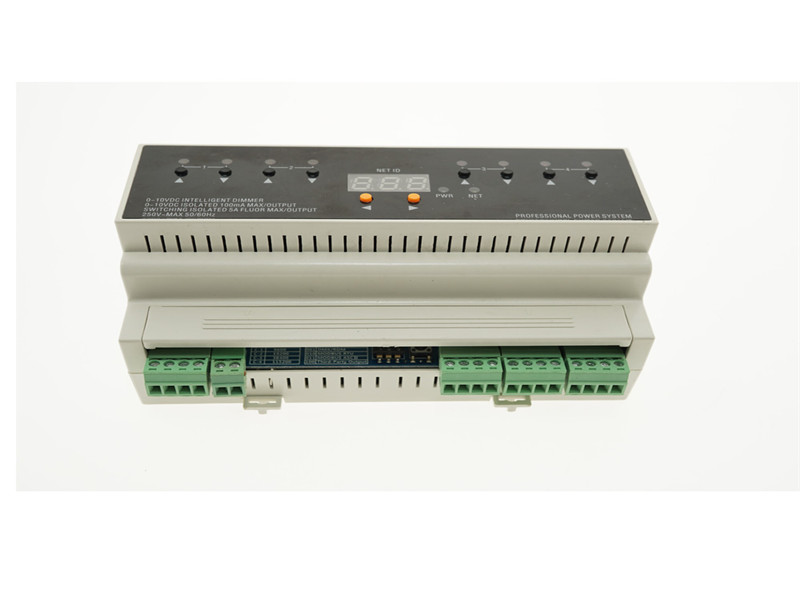

Description:
Supports 120 and 220 to 240 Volt, 50/60 Hz applications
Allows switching of lighting and exhaust fans
Includes an override input
Communicates using DC-NET
Sets up via the front panel or through software
Offers programmable functionality via DIN-CP1
1 – 4:(8) Red LEDs and (8) miniature pushbuttons for status indication and local control of each channel
NET ID:(3) 7-Segment green LED digits and (2) miniature pushbuttons for setting DC-NET ID; digits also display output levels
PWR:(1) Green LED, illuminates when DC power is applied to the NET port
NET:(1) Yellow LED, indicates communication with the control processor
RESET:(1) Recessed miniature pushbutton, resets internal processor
