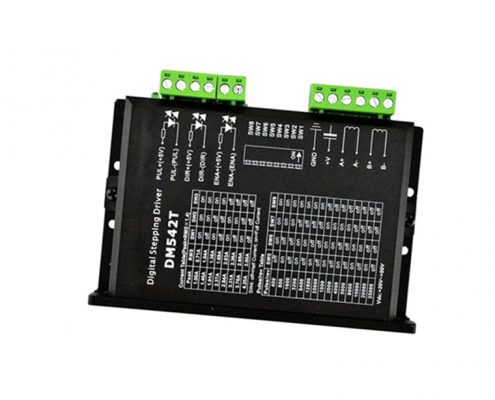

DM542T Stepping Digital Stepper Motor Driver

Product Model:

OKYN41211

DM542T DM542 Stepping Digital Stepper Motor Driver Controller

Product Description

Output Peak Current: 1.0-4.2A (3.0 RMS.)
Input Voltage: 20-50VDC (Typical 36VDC).
3.Logic Signal Current: 7-16mA (Typical 10mA).
4.Pulse Input Frequency: 0-200kHZ.
5.Pulse Width: 2.5μS.
6.Isolation Resistance: 500MΩ.
7.Input voltage: 20-50VDC.

Send Inquiry

Chat Online

Call on Whatsapp

Share This Product

Product Details

Product Description

Description:

Output Peak Current: 1.0-4.2A (3.0 RMS.)
Input Voltage: 20-50VDC (Typical 36VDC).
3.Logic Signal Current: 7-16mA (Typical 10mA).
4.Pulse Input Frequency: 0-200kHZ.
5.Pulse Width: 2.5μS.
6.Isolation Resistance: 500MΩ.
7.Input voltage: 20-50VDC.
8.Anti-Resonance provides optimal torque and nulls mid-range instability.
9.Motor auto-identification and parameter auto-configuration when power on, offer optimal responses with different motors.

Feature：
1.15 optional micro-step resolutions including 400, 800, 1600, 3200, 6400, 12800, 25600, 1000, 2000, 4000, 5000, 8000, 10000, 20000, 25000.

2.Soft-start with no “jump” when powered on.

3.8 optional peak current including 1.00A, 1.46A, 1.91A, 2.37A, 2.84A, 3.31A, 3.76A, 4.20A.

4.Pulse input frequency up to 200 KHZ, TTL compatible and optically isolated input.

5.Automatic idle-current reduction.

6.Suitable for 2-phase and 4-phase motors.

7.Support PUL/DIR mode.

8.Over-voltage and over-current protections

9.Cooling: Natural cooling or forced cooling

10.Environment: Avoid dust, oil fog and corrosive gases

Specification:
1.Ambient Temperature: 0℃-65℃
2.Humidity: 40%RH-90%RH
3.Operating Temperature: -10℃-45℃
4.Vibration: 10-55HZ / 0.15mm
5.Storage Temperature: -20℃-65℃
