1.The module integrates the antenna, all RF circuits, power management and clock modules.
2.This module can use two-way ranging or TDOA positioning system
3.Positioning accuracy of 10cm, data transmission rate up to 6.8Mbps,
4.Widely used in nursing homes, parking lots and other fields.
Description:
1.The module integrates the antenna, all RF circuits, power management and clock modules.
2.This module can use two-way ranging or TDOA positioning system
3.Positioning accuracy of 10cm, data transmission rate up to 6.8Mbps,
4.Widely used in nursing homes, parking lots and other fields.
Feature:
1.Module Size: 24* 13* 2.9MM ± 0.2MM
2.Protocol Standard: IEEE 802.15.4-2011UWB
3.Support Interface: SPI
4.Spectrum Range: 3.5GHZ To 6.8GHZ
5.Antenna Form: PCB antenna on board, transmission distance is about 40 meters
6.Transmit Power: 802.11b: 16 ± 2d8m; 802.11g: 16: 2d8m; 802.11n: 16r2d8m
7.Power Supply Range: 2.8V To 3.6V, default 3.3V
8.Working Temperature: Industrial grade -40℃ To + 85℃
9.Advantages of UWB positioning technology
10.UWB positioning technology has significant advantages such as large system capacity, fast transmission speed, low transmission power, high multi path resolution, good system confidentiality, high positioning accuracy, and strong penetration ability.
Package Included:

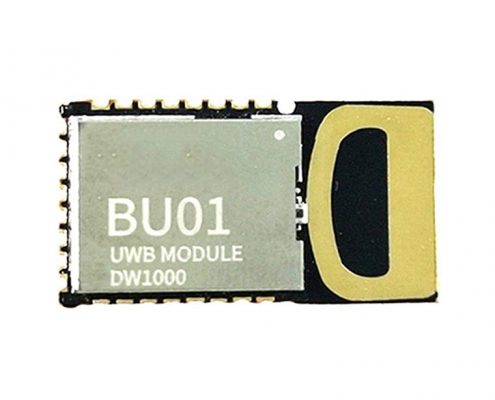

1pc* BU01 Indoor Positioning Module
