Wireless DMX512 PCB Module — OKYN0346

This module is aWAN module that supports long-distance communication, ultra-low power consumption, high sensitivity, and high cost performance.
The chip ASR6501 of the module integrates radio transceiver,thismodem and 32-bit RISC MCU. MCU uses ARM Cortex M0 + core, operating frequency is 48MHz. The operating frequency range of ASR6501 can support continuous coverage from 150KMHz to 960MHz; it supports modulation and (G)FSK modulation. ASR6501 supports ultra-high sensitivity and transmit power.

Product Description

Description:

This module is aWAN module that supports long-distance communication, ultra-low power consumption, high sensitivity, and high cost performance.
The chip ASR6501 of the module integrates radio transceiver,thismodem and 32-bit RISC MCU. MCU uses ARM Cortex M0 + core, operating frequency is 48MHz. The operating frequency range of ASR6501 can support continuous coverage from 150KMHz to 960MHz; it supports modulation and (G)FSK modulation. ASR6501 supports ultra-high sensitivity and transmit power.

Specification:

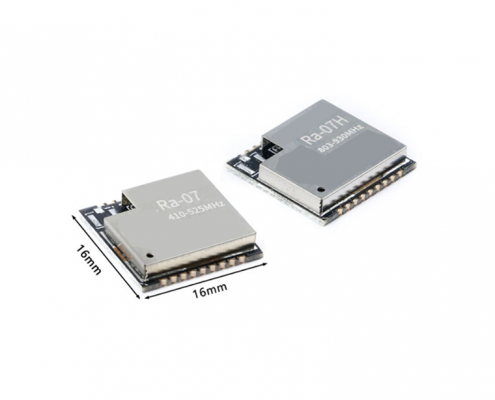

1.Module model: Ra-07/Ra-07H

2.Package: SMD18

3.Antenna: Stamp hole pad /IPEX terminal

4.Frequency Range:

5.Ra-07: 410MHz~525MHz (default)

6.Ra-07H: 803MHz~930MHz (default)

7.Transmitting power: 19dBm±1

8.Receiving ft degree: -136dBm±1

9.Interface: UART/GPIO/PWM/SWD/ADC/I2C

10.Power supply voltage: 3.3v

11.Model Number: Ra-07 Ra-07H
