Description:
- RF chip The SX1278 mainly uses a TM remote modem for ultra-long-range spread spectrum communication with high anti-interference and minimizes current consumption. With patented TM modulation technology, the SX1278 has a high sensitivity of over -148dBm, +18dBm power output, long transmission distance and high reliability. At the same time, compared with the traditional modulation technology, TM modulation technology has obvious advantages in anti-blocking and selection, and solves the problem that the traditional design scheme can not take into consideration the distance, anti-interference and power consumption at the same time.

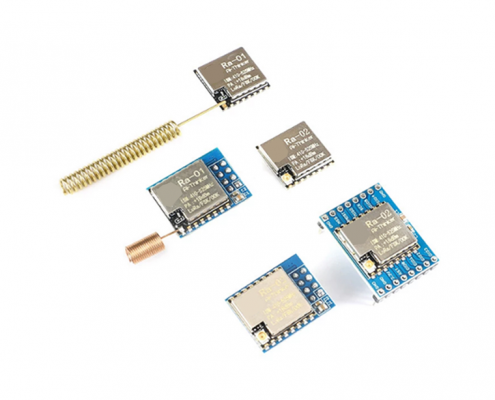

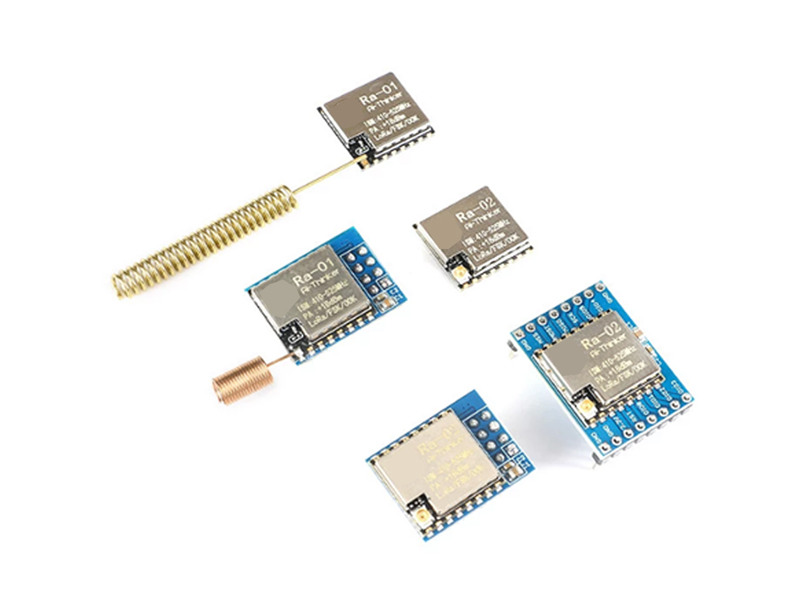

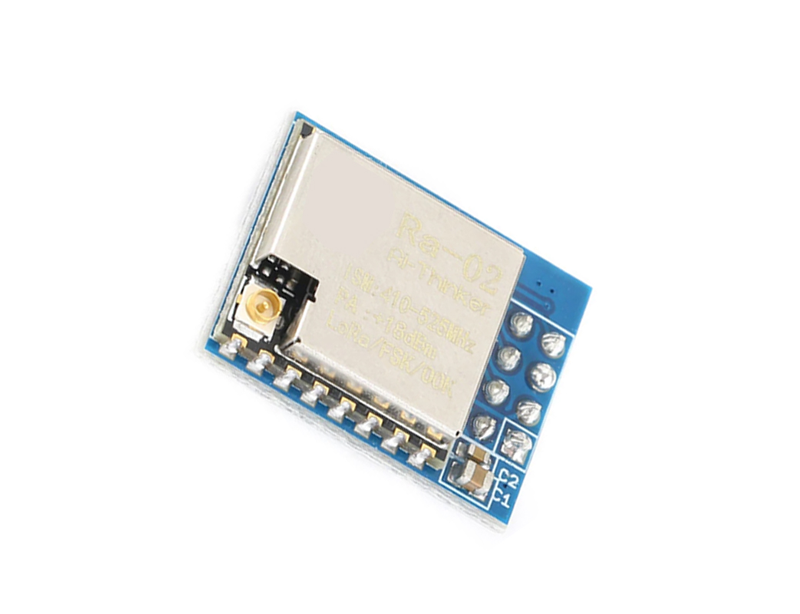

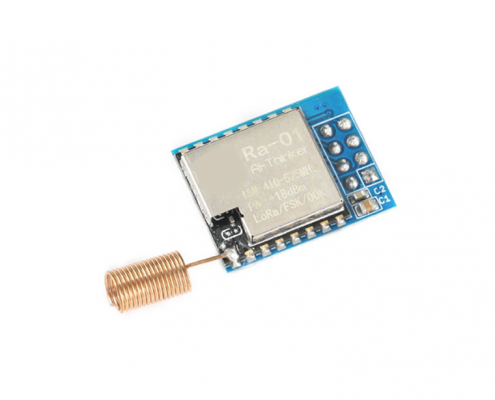

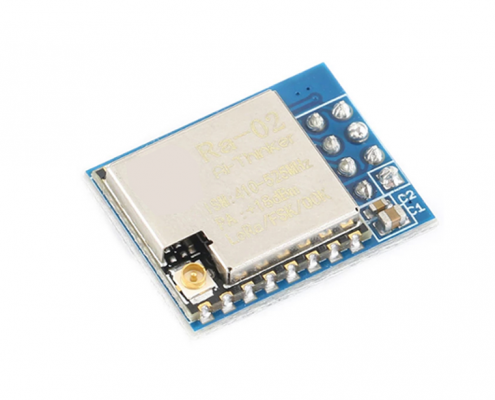

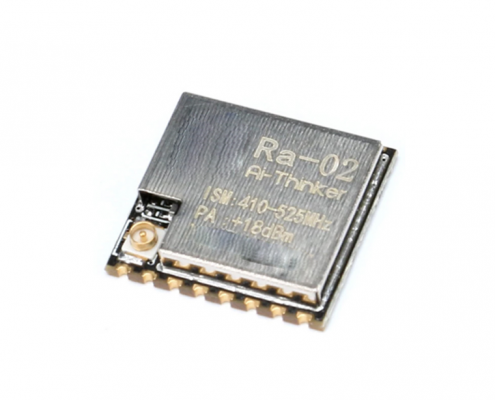

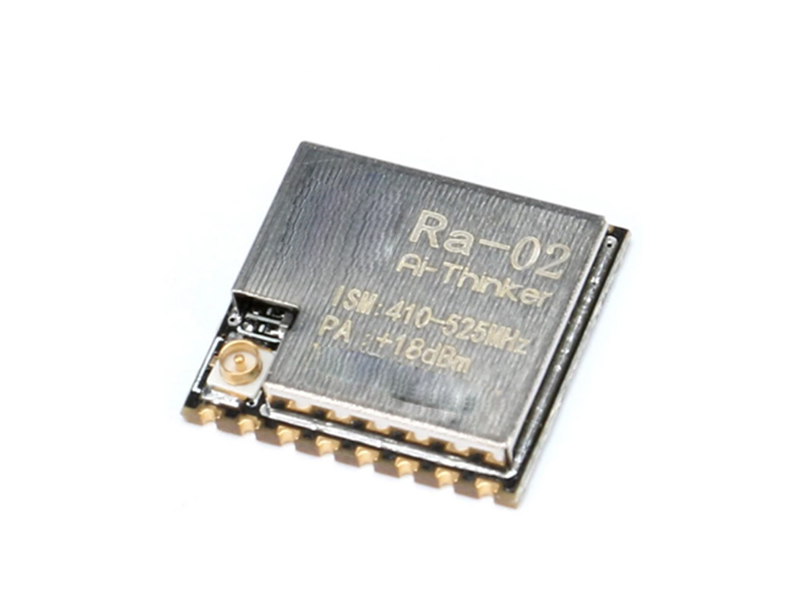

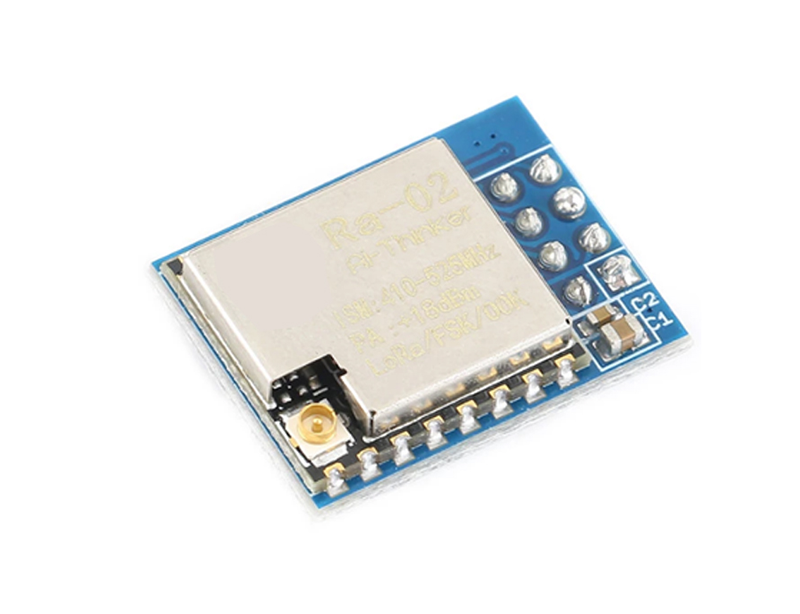

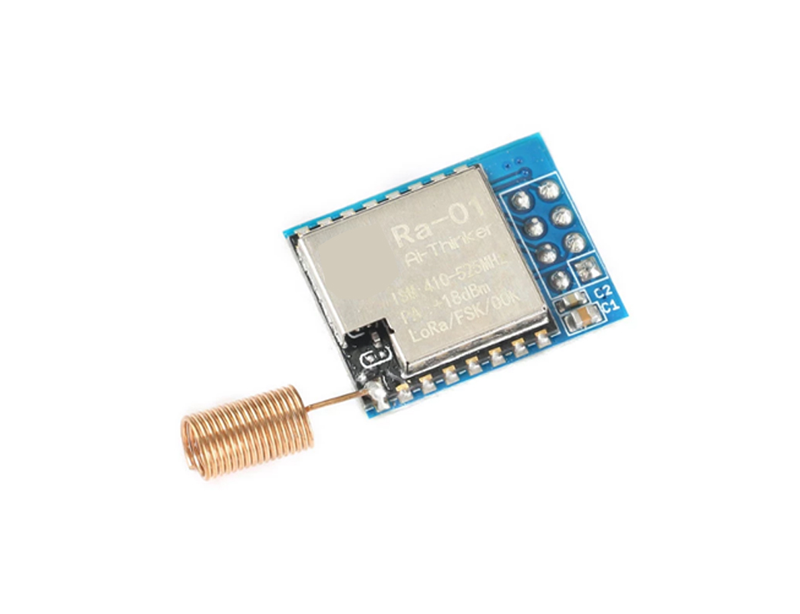

- Ra-01, Ra-02 operating frequency is 410-525MHz
Specification:
1.Spectrum range 410-525MHz
2.433MHz average operating current TX: 93mA RX: 12.15mA Standby: 1.6mA
3.470MHz average operating current TX: 97mA RX: 12.15mA Standby: 1.5mA
4.Power supply range 2.5 ~ 3.7V, typical value 3.3V
5.Working temperature -30 ° C ~ 85 ° C
6.Storage environment -40°C ~ 90°C, <90%RH
7.Operating Temperature: -30~85 Degree
8.Supply Voltage: 2.5-3.7V
Package included:

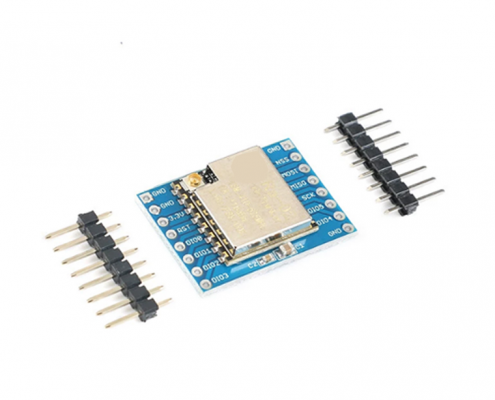

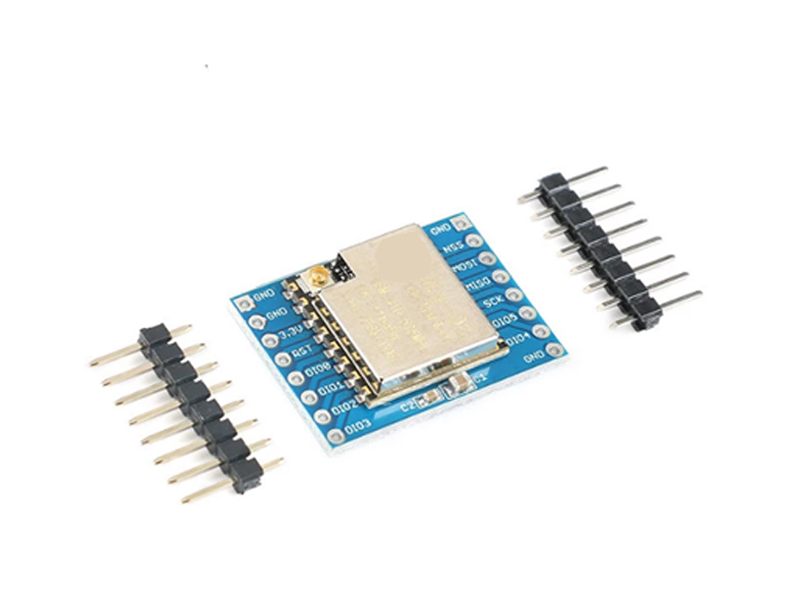

SX1278 Module
