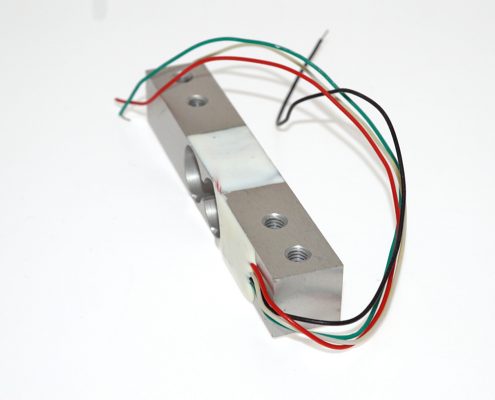

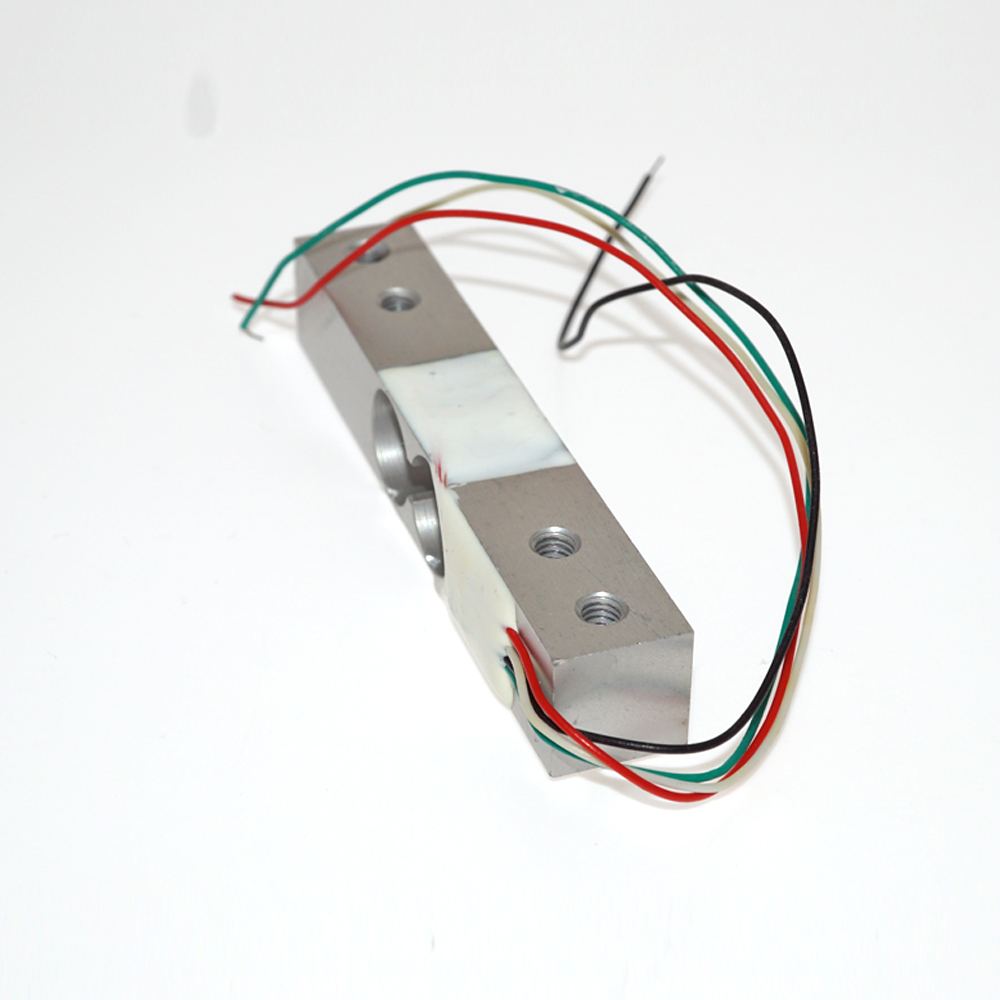

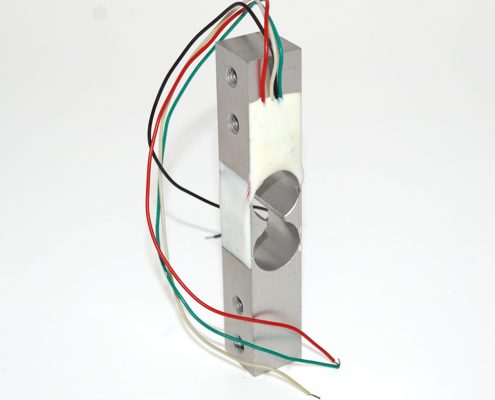

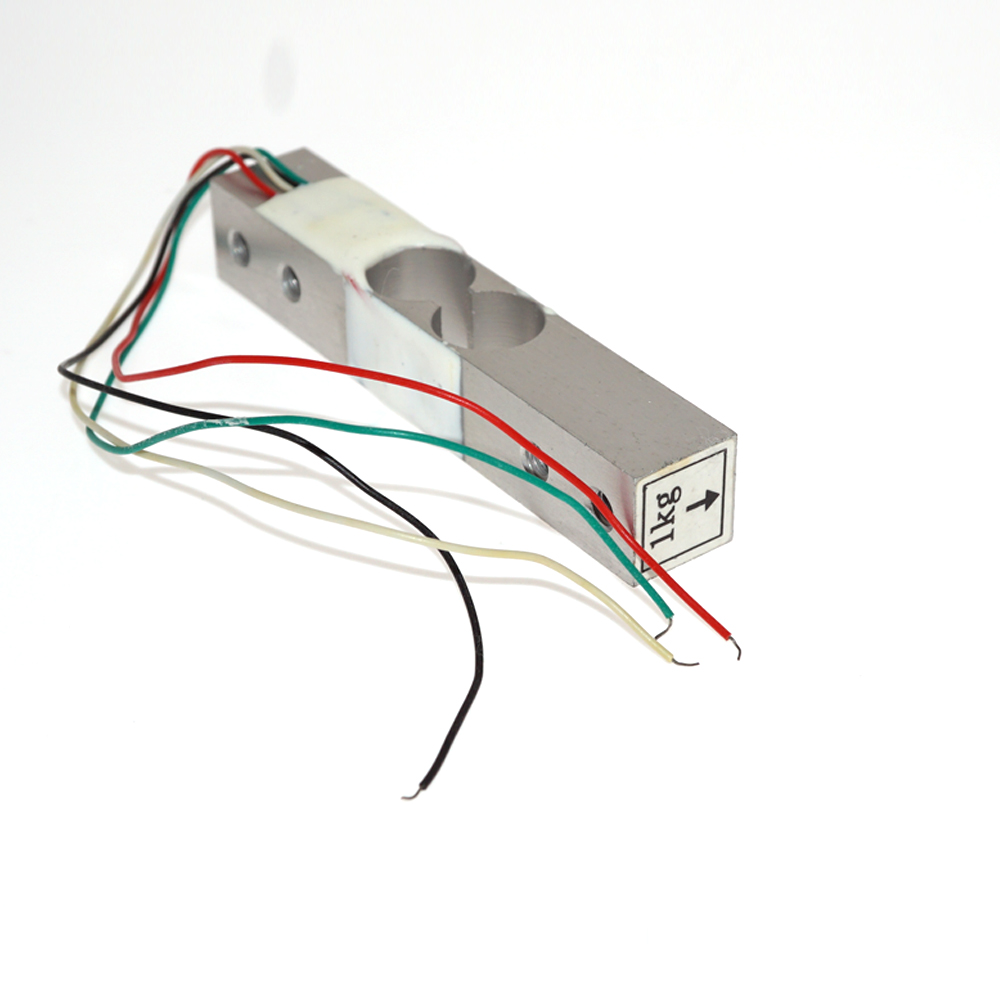

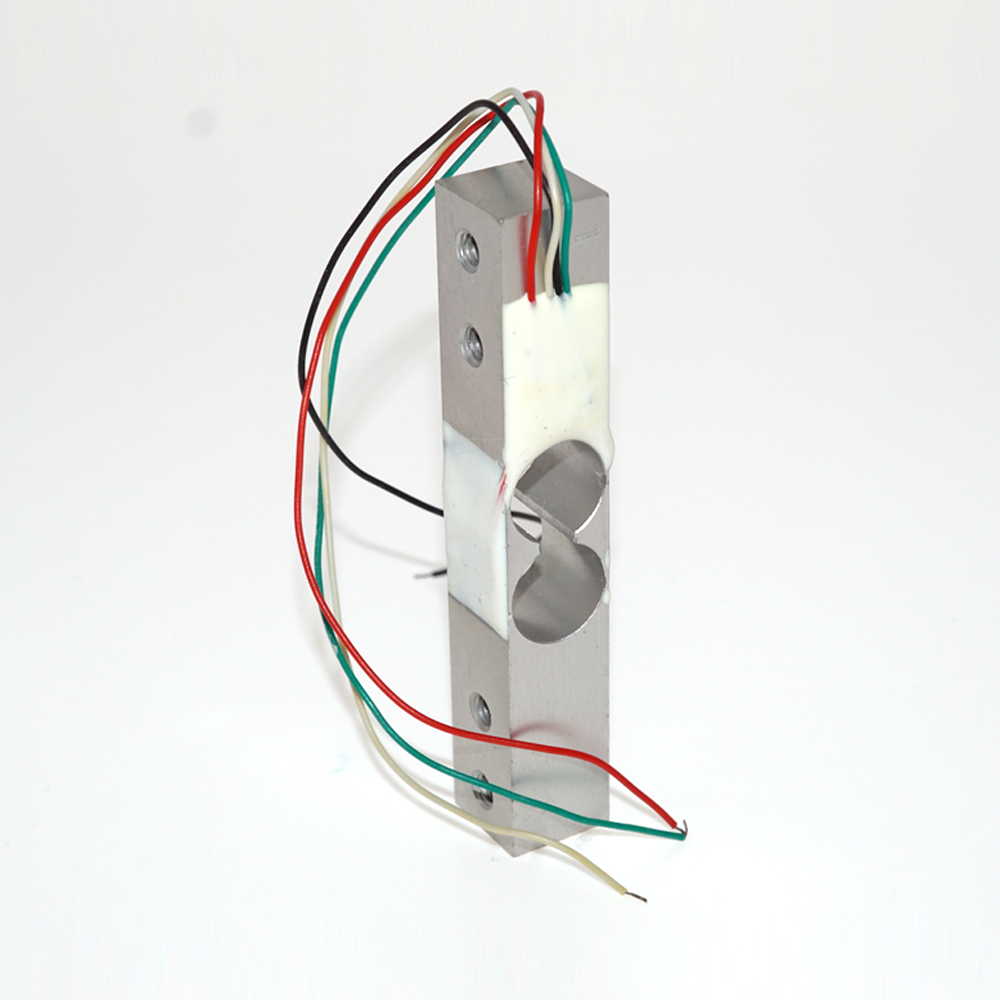

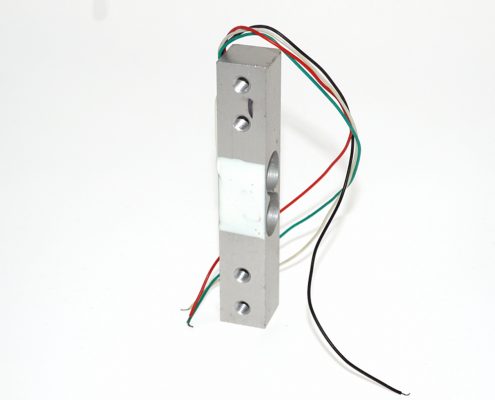

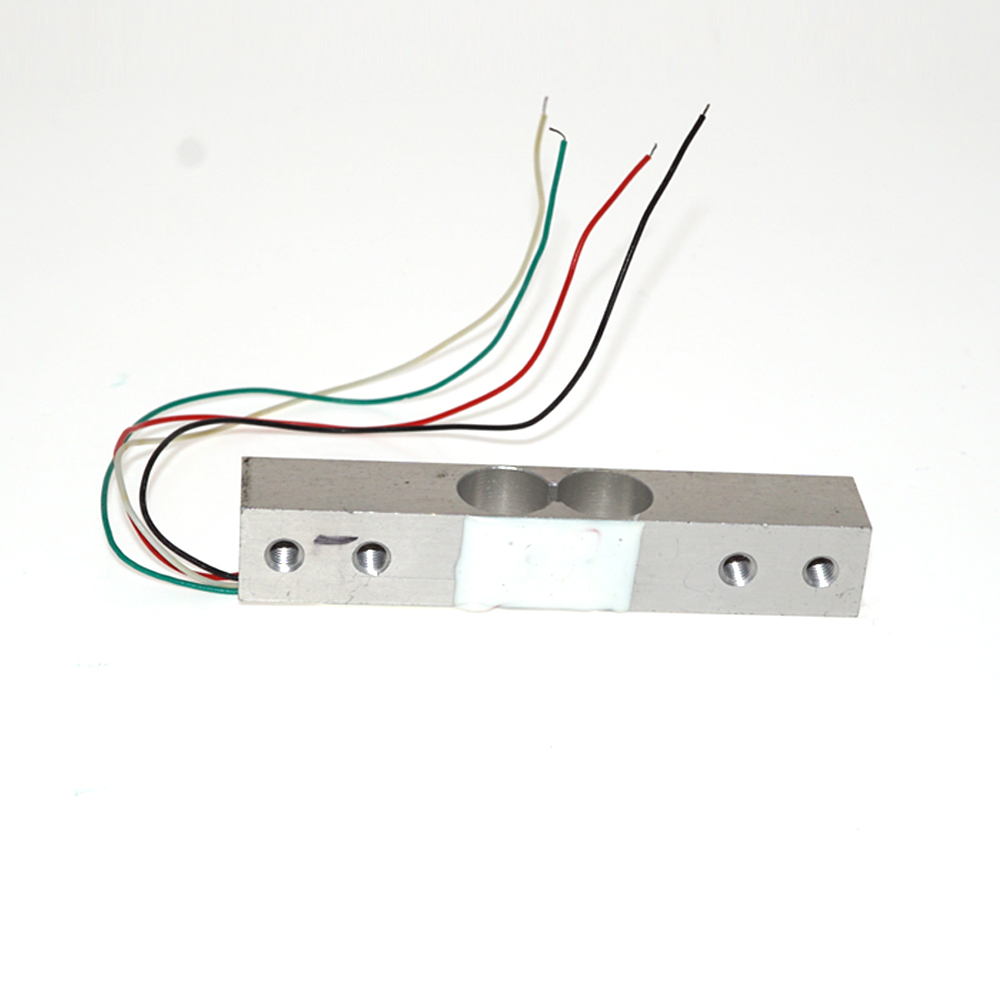

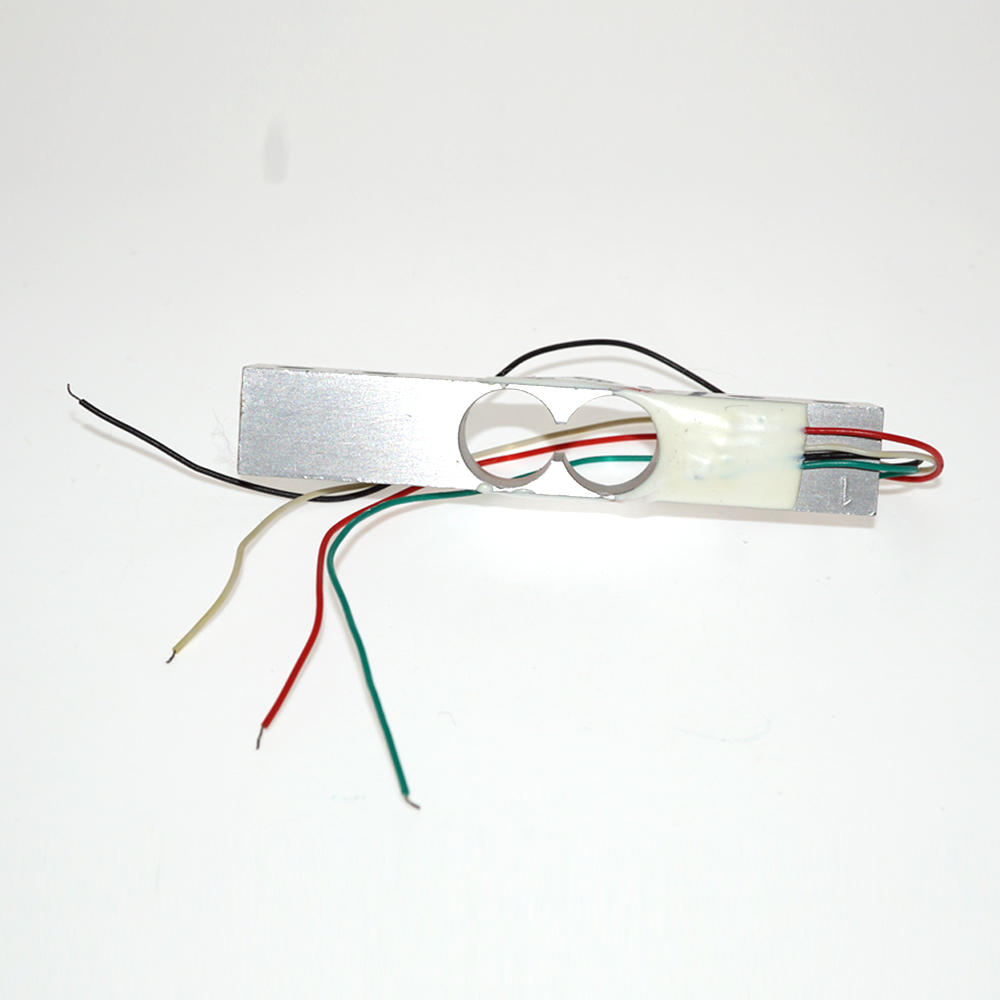

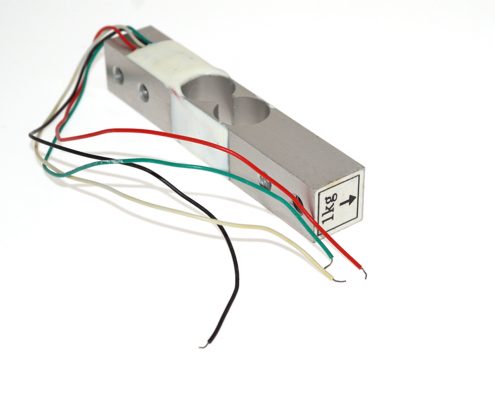

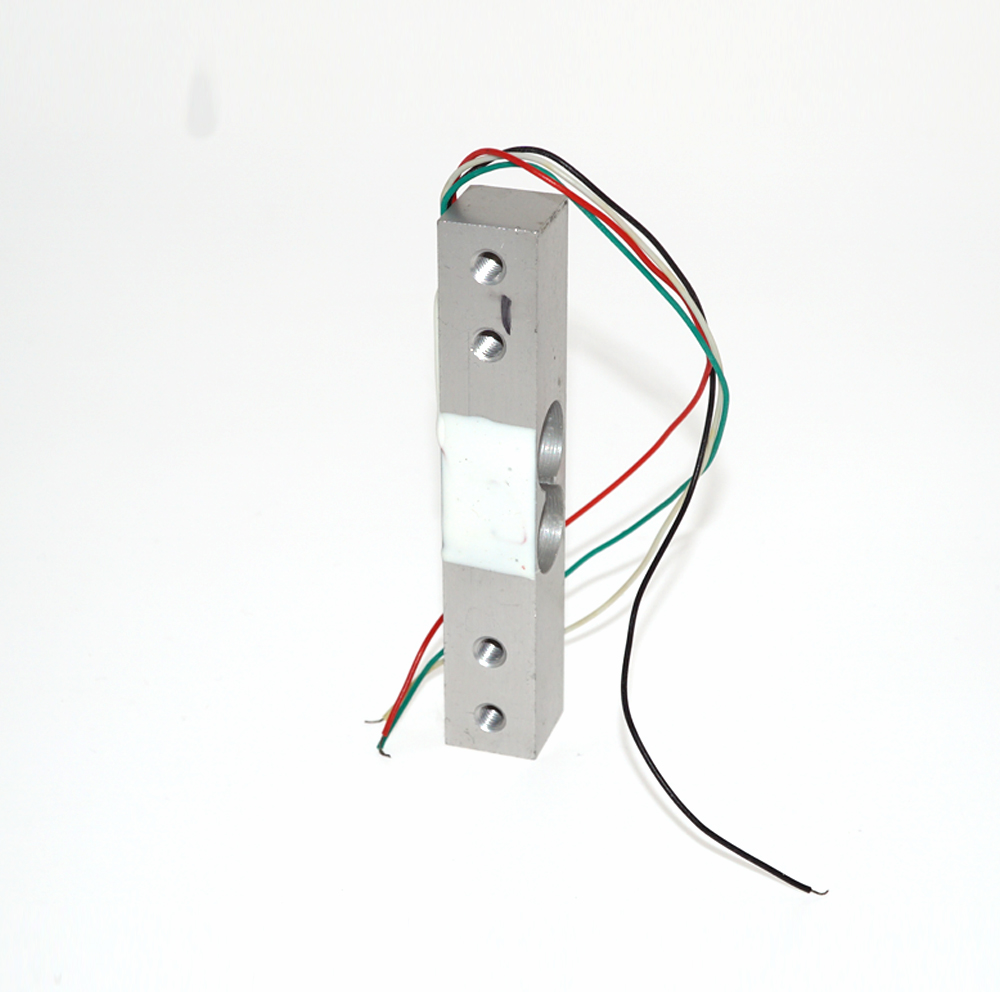

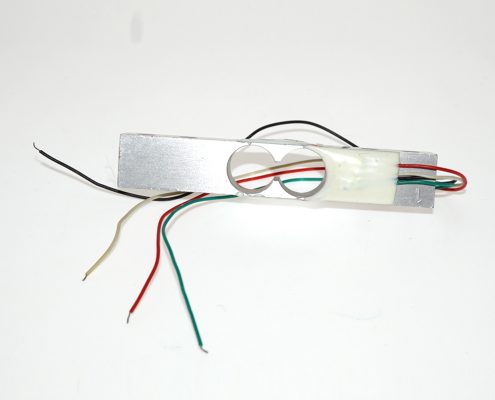

1.Rated Load: 1Kg.
2.Rated Output: 1.0mV/V±0.15mV/V.
3.Input End: Red+ (power), Black-(power).
4.Output End: Green+(signal), White-(signal).
5.Recommended operating voltage: 3 ~ 12 VDC.
6.Maximum operating voltage: 15 VDC.
7.Input Impedance: 1115±10%Ω.
8.Output Impedance: 1000±10%Ω.
9.Weight: 30g.
1.Rated Load: 1Kg.
2.Rated Output: 1.0mV/V±0.15mV/V.
3.Input End: Red+ (power), Black-(power).
4.Output End: Green+(signal), White-(signal).
5.Recommended operating voltage: 3 ~ 12 VDC.
6.Maximum operating voltage: 15 VDC.
7.Input Impedance: 1115±10%Ω.
8.Output Impedance: 1000±10%Ω.
9.Weight: 30g.
