Description:
Rated voltage 12V or 24V at Optional; Water inlet valve or water discharge valve at Optional;
1.Working pressure: pressure type 0.02–0.8MPa, pressureless type 0–0.01MPa;
2.Service life: ≥ 500,000 times, laboratory data environment, temperature of 30 degrees, power on for 10 seconds every 10 seconds;
3.Ambient temperature: 0-50 ° C;
4.Angle of coil and valve body: 90, 180, 270, 360 degrees adjustable;
5.Interface specifications: water inlet quarter external thread (G1 / 2), water outlet quarter external thread (G1 / 2);
6.Last function: without;
7.Filter function: suitable for pure water and tap water; not suitable for acid-base, thick, viscous liquids and all other non-liquids;
8.Rated electrical load: DC12V, 0.55A; DC24V, 0.23A;
9.Insulation resistance: DC500V megohmmeter resistance should be greater than 100MQ insulation level E after 1min;
10.Type: normally closed (power on and water on);
11.Medium temperature: 0-90 ° C;
Package Include:

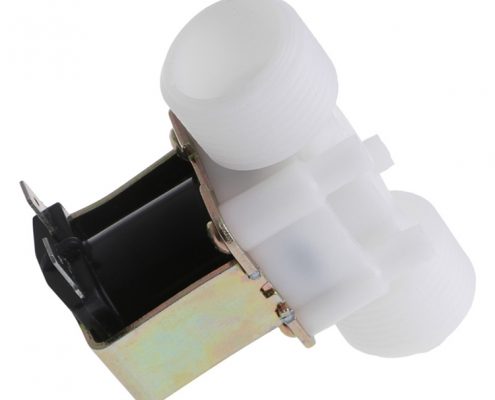

1 x Normally Closed Electric Magnetic Water Control Valve
