Phython Graphic Expansion Board IOBIT V2.0 Breakout Board Adapter For Micor:Bit–OKY6019 – OKYSTAR

Product Model: OKY6019

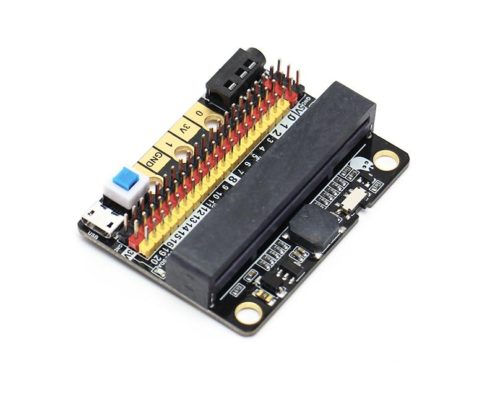

Phython Graphic Expansion Board IOBIT V2.0 Breakout Board Adapter For Micor:Bit

Product Description

100% Brand New & High Quality

Description:
This is a low-cost expansion board for Micro:B, which is specifically used for the IO ports of Micro:B. It has taken all the IO resources on the Micro:bit, and also come with a built-in buzzer. The buzzer is connected to the P0 pin through the slide switch. The small size is very suitable for small projects using Micro:B.

Note: The board comes without micro:bit controller board, please get it separately from our store.

Call on Whatsapp

Share This Product

Product Details

Product Description

Description:

100% Brand New & High Quality
Features:
IO expansion board
Small size, very suitable for DIY
All IO ports are extracted
On-board buzzer
At the same time, the 3.5mm audio connector on the board can be connected to audio equipment
Two LEGO-compatible pin holes for easy assembly and integration
The 3PIN interface is distinguished by yellow, red, and black.
It imitates the 5PIN gold fingers on the Micro:B. This is convenient for makers who like to use the alligator clips
Compared with IObit1.0, the biggest difference is that it can input and output 5V, support 5V sensor use, and increases the drive capacity (can drive multiple 9G small servos)
Includes 1A self-recovery fuse
Custom-designed silk screen board
Technical parameters:
Power supply mode: IObitV.2.0 supports USB5V power supply. This power supply mode requires pressing the blue power switch.
Working voltage: 3V-5V (5V sensor module is not supported under 3V power supply)
Output current: 3V and 5V power interface with maximum output 1A
Serial port extraction: serial port can map IO port
Length x width x height: 57mmx44mmx12mm

Package Include:

1 x Expansion Board For Micro:B
