1.Battery type electricity quantity display
2.Wide application fields:lithium battery
3.Using Method:connect display board positive and negative port with tested battery positive and negative port,digital tube will display real-time battery electricity quantity
4.Digital Color:outline red,display block blue
Parameter:

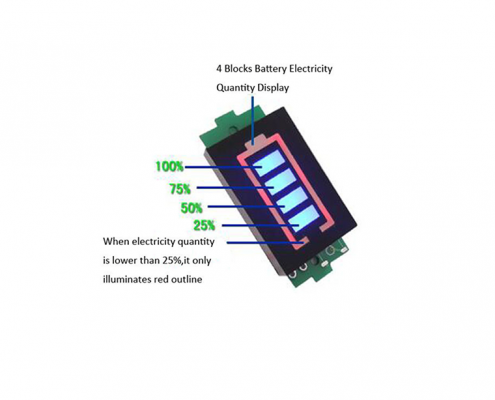

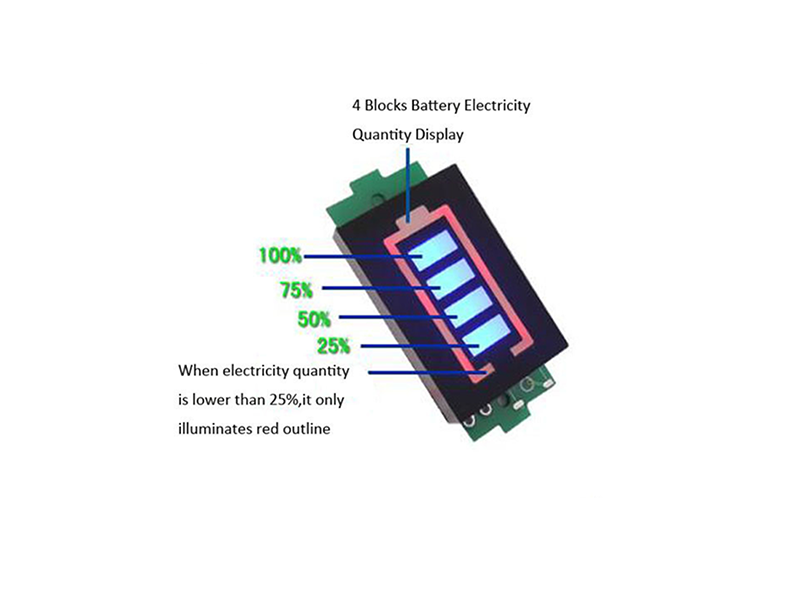

1.When battery voltage is over N*3.3V,it will illuminate 1 block electricity quantity
2.When battery voltage is over N*3.5V,it will illuminate 2 blocks electricity quantity
3.When battery voltage is over N*3.7V,it will illuminate 3 blocks electricity quantity
4.When battery voltage is over N*3.9V,it will illuminate 4 blocks electricity quantity
5.When battery voltage is less than N*3.3V,4 blocks display will be off;it represents battery is less than 3.3V,and you can charge the battery

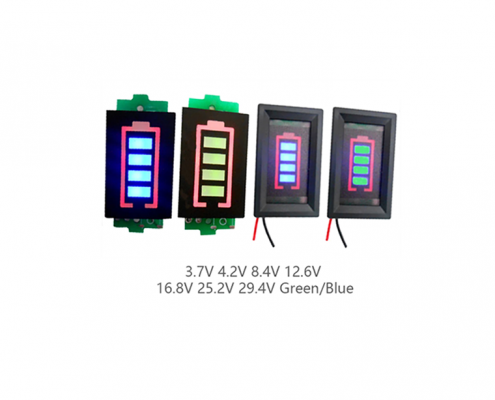

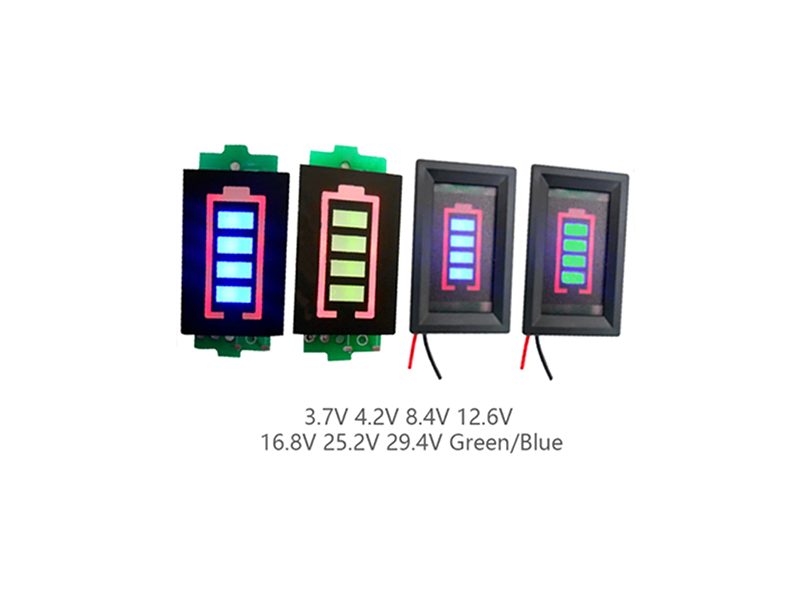

Without case version:
1.1S Single 3.7V Lithium Battery Capacity Indicator Module 4.2V Blue Display Electric Vehicle Battery Power Tester
2.2S 2 Series Lithium Battery Capacity Indicator Module 8.4V Blue Display Electric Vehicle Battery Power Tester
3.3S 3 Series Lithium Battery Capacity Indicator Module 12.6V Green Display Electric Vehicle Battery Power Tester
4.3S 12.6V Lithium Battery Capacity Indicator Module 3 Series Blue Display Electric Storage Battery Power Tester Meter
5.4S 4 Series Lithium Battery Capacity Indicator Module 16.8V Blue Display Electric Vehicle Battery Power Tester
6.6S 6 Series Lithium Battery Capacity Indicator Module 25.2V Blue Display Electric Vehicle Battery Power Tester
7.7S 7 Series Lithium Battery Capacity Indicator Module 29.4V Green Display Electric Vehicle Battery Power Tester
8.7S 7 Series Lithium Battery Capacity Indicator Module 29.4V Blue Display Electric Vehicle Battery Power Tester
With case version:

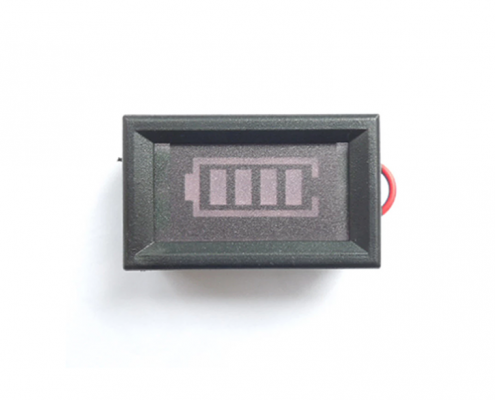

1.1S 3.7V Lithium Battery Capacity Indicator Module 4.2V Blue Display Electric Vehicle Battery Power Tester Li-ion With Shell
2.2S 2 Series Lithium Battery Capacity Indicator Module 8.4V Blue Display Electric Vehicle Battery Power Tester Li-ion With Shell
3.3S 3 Series Lithium Battery Capacity Indicator Module 12.6V Blue Display Electric Vehicle Battery Power Tester Li-ion With Shell
4.4S 4 Series Lithium Battery Capacity Indicator Module 16.8V Blue Display Electric Vehicle Battery Power Tester Li-ion With Shell
5.6S 6 Series Lithium Battery Capacity Indicator Module 25.2V Blue Display Electric Vehicle Battery Power Tester Li-ion With Shell
6.7S 7Series Lithium Battery Capacity Indicator Module 29.4V Green Display Electric Vehicle Battery Power Tester Li-ion With Shell
7.7S 7 Series Lithium Battery Capacity Indicator Module 29.4V Blue Display Electric Vehicle Battery Power Tester Li-ion With Shell
Feature:
1.Battery type electricity quantity display
2.Wide application fields:lithium battery
3.Using Method:connect display board positive and negative port with tested battery positive and negative port,digital tube will display real-time battery electricity quantity
4.Digital Color:outline red,display block blue
Package included：

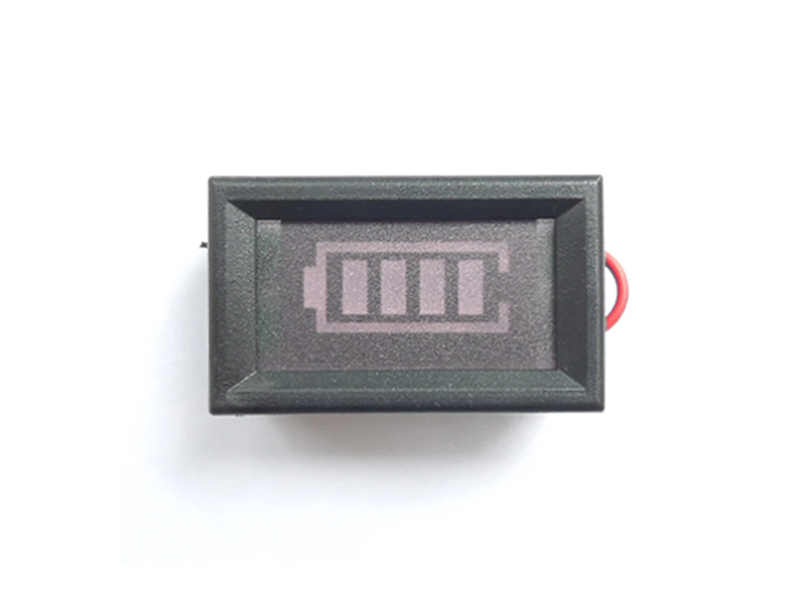

1PC*Lithium Battery Capacity Indicator Meter
