Can measure farther, faster, better anti-interference.

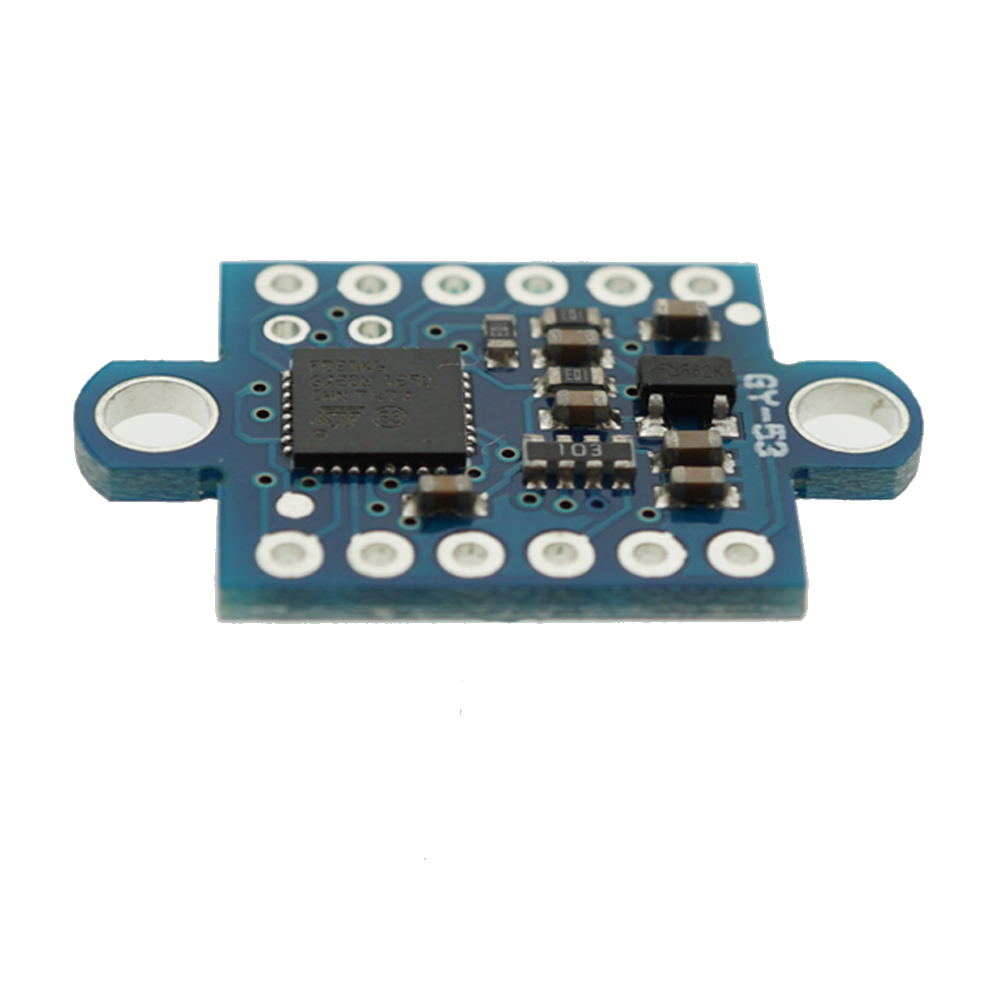

Gy-53-vl53l1x laser ToF flight time ranging sensor module serial port PWM output VL53L1x +stm32
Easy to use, no complex communication, no complex algorithm, direct output distance data.
It is easier to connect to other MCU and computer (you can use USB TTL module directly to view distance data).
Power supply: 3-5v (internal low voltage differential voltage stabilizer)
Range: 5cm-4 m (dark light, long distance mode)
Size: 25mm*15.6mm (including mounting hole)
Communication: serial port output, PWM output, chip itself IIC output.
Provide serial port and PWM read data code: stm32, ardui, 51 MCU.
PC display distance software, direct usb to TTL module connection, computer view data
Default does not weld row needle
Note that the infrared will be affected by external light, and under strong light will affect the maximum range of measurement.
Default configuration: serial port baud rate 9600, automatic output, high precision mode.
Please remove the sensor film when using.
If you only use chip mode, you don’t need a single chip microcomputer to work. You only need PS pin to GND, so you can use simple modules.Single – chip computer does not consume the current does not affect the measurement.
