ESP8266 ESP-12 UNO R3 ESP8266 – OKY2260

Product Model: OKY2260

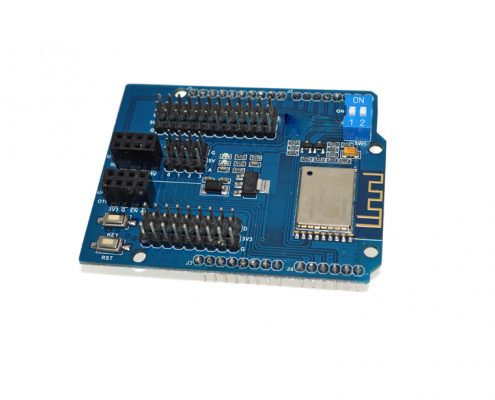

UNO R3 ESP8266 ESP-13 Web Sever Serial WiFi Shield Board Module For Arduino

Product Description

Model: ESP8266MOD
Size(L*W*H):70 x 50 x 20 mm
Serial Parity: None
Serial data bits:5/6/7/8bits
Serial port stop bits: 1/2 bit
Wireless transmission rate: 110-460800bps
WiFi current: Continuous transmission: ≈70mA (200mA MAX),
Standby: <200uA
The working temperature: -40 ℃ ~ + 125 ℃
Support for:Wireless 802.11 b/g/n standards
STA/AP two modes of operation
Standard TCP/UDP Server and Client
support:1200/2400/4800/9600/19200/38400/57600/74800/115200 bps

Send Inquiry

Chat Online

Call on Whatsapp

Share This Product

Product Details

Product Description

Model: ESP8266MOD
Size(L*W*H):70 x 50 x 20 mm
Serial Parity: None
Serial data bits:5/6/7/8bits
Serial port stop bits: 1/2 bit
Wireless transmission rate: 110-460800bps
WiFi current: Continuous transmission: ≈70mA (200mA MAX),
Standby: <200uA
The working temperature: -40 ℃ ~ + 125 ℃
Support for:Wireless 802.11 b/g/n standards
STA/AP two modes of operation
Standard TCP/UDP Server and Client
support:1200/2400/4800/9600/19200/38400/57600/74800/115200 bps

Product Features

1.Built-in TCP / IP protocol stack, you can configure a socket.
2.Real serial WiFi, program without any configuration.
3.Can be used as stand-alone expansion board Uno use, pin all leads.
4.Based on WiFi Web Server configuration parameters and serial port parameters.
5.WiFi using industrial-grade chips ESP8266, modules for the ESP-13 with metal shield, anti-jamming.
6.Can be used as an independent ESP8266 development board, download the official AT commands firmware, NodeMCU open source firmware.
7.Standard pin-compatible Uno, Mega2560 and other control board,UNO connection with the use of a voltage converter chip, so 3.3V and 5V are compatible.
8.Serial port DIP switch with dual control, so the expansion board can be used alone as an Uno expansion boards, it can also be used as ESP8266 expansion board use.
