产品型号：

OKYN-G6226

Electronic Components Dot Matrix Display Simulation Elevator Control DIY Welding Kit

Product Description

Competitive Advantages:
1. Convenient & Friendly Customer Service.
2. Low Prices Direct From Factory Suppliers.
3. Fast Delivery Around the World.
4. High Quality With Global Standards.
5. 2 Year Factory Warranty.
6. Safe Shipping Way and Payment.

Call on Whatsapp

Share This Product

Product Details

Product Description

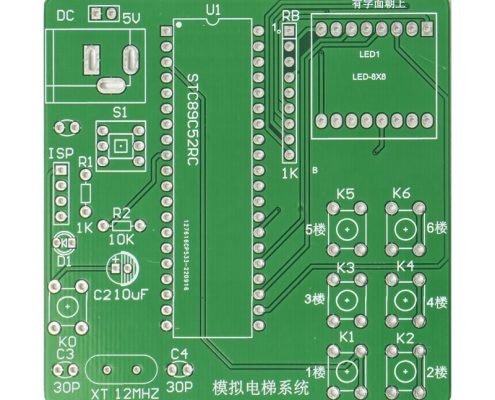

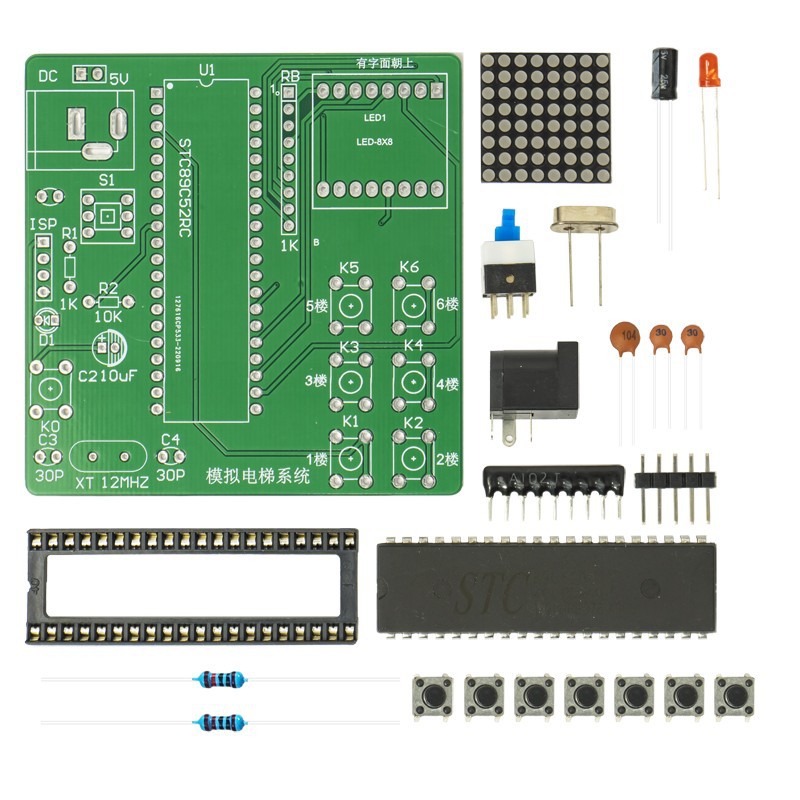

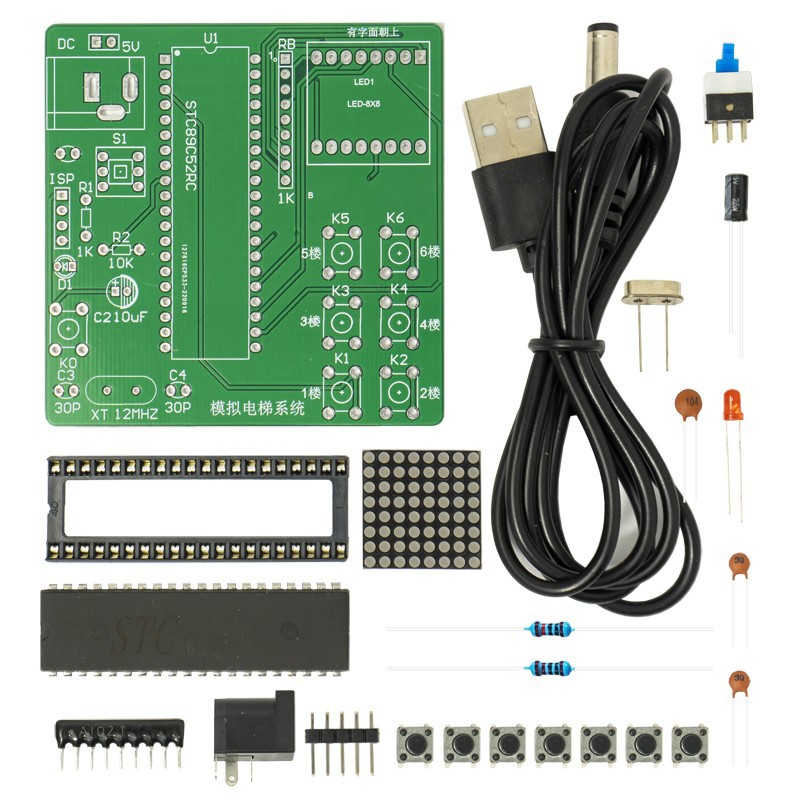

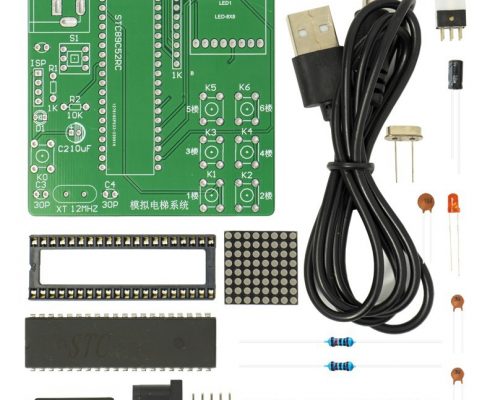

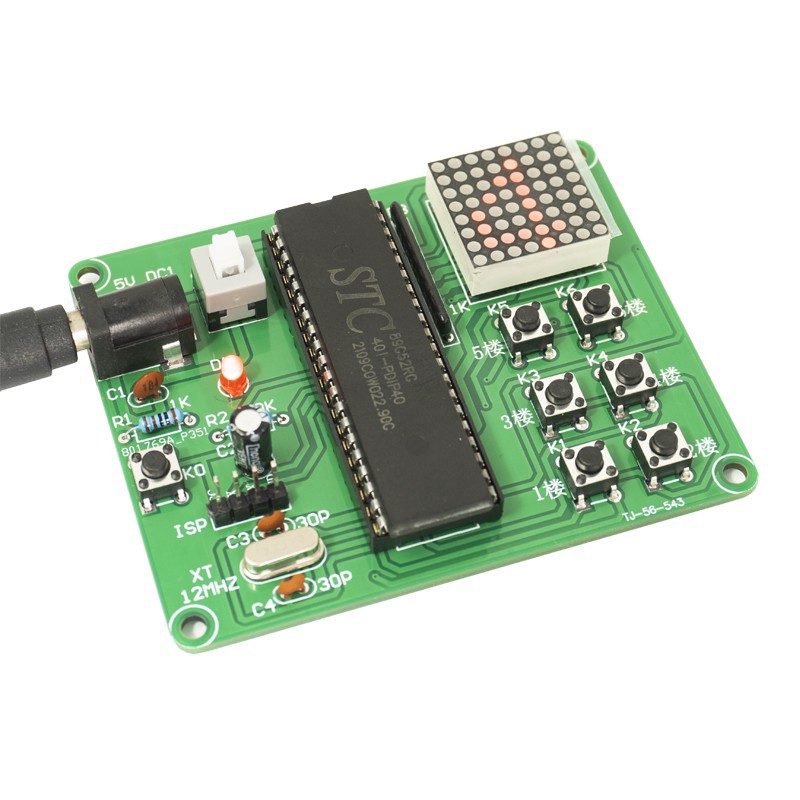

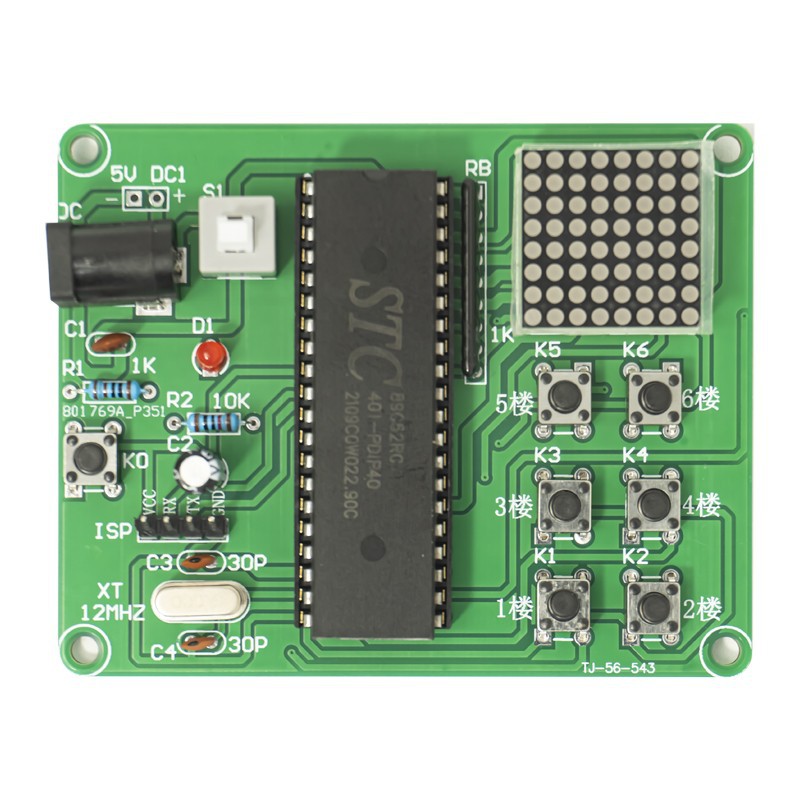

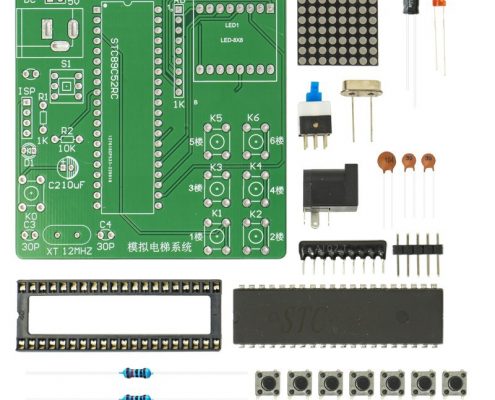

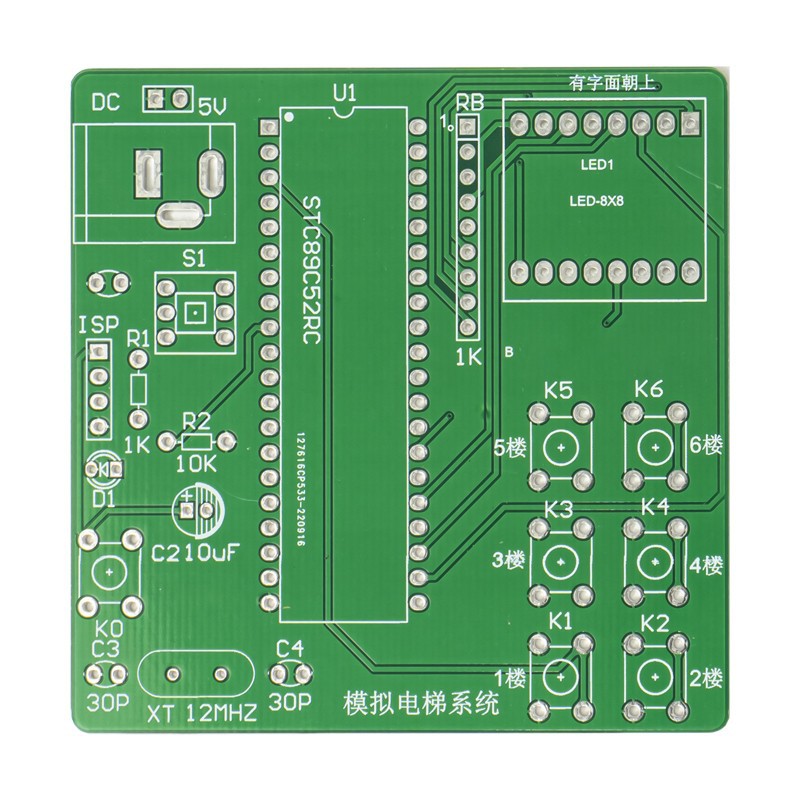

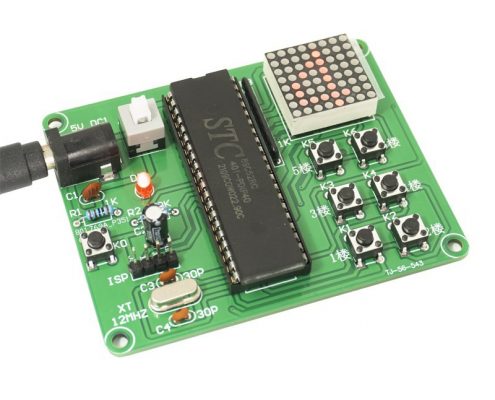

This circuit mainly consists of four parts: keyboard module, microcontroller minimum system control circuit, display module circuit, and power module circuit.

The minimum system of the microcontroller mainly includes a reset circuit. After the circuit is reset, the floor display number 1 indicates that the elevator is on the first floor, and the elevator floor position is controlled by a delay circuit.

The delay circuit has a 2-second delay, and each floor is controlled by a 2-second delay, which means that every 2 seconds of delay indicates that the elevator has gone to one floor, and corresponding up and down arrows are displayed to
indicate

Supply voltage: DC5V

Product size: 80 * 64mm
