Product Model:OKN515-17

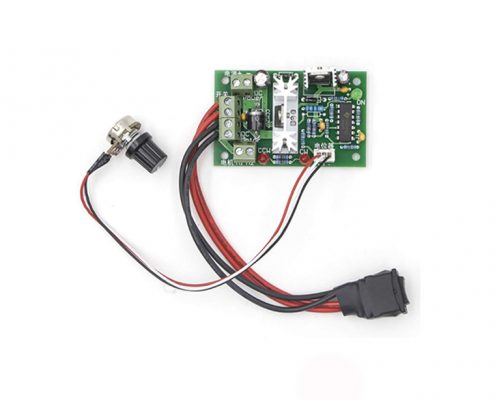

Upgraded Adjustable PWM DC Motor Speed Controller Motor

Product Description

1.Working Voltage: DC 10V To DC 30V

2.Maximum Power: 120W

3.Rated Current: 3A

4.Max Current: 4A

5.Maximum Continuous Output Current:3A

6.Overload Short Circuit Protection Current:4A

7.Short circuit time does not exceed 30 seconds

8.PWM Frequency: 500KHZ

9.PWM Pulse Width Modulation Range: 5% To 95%

10.Motor Type:Brush

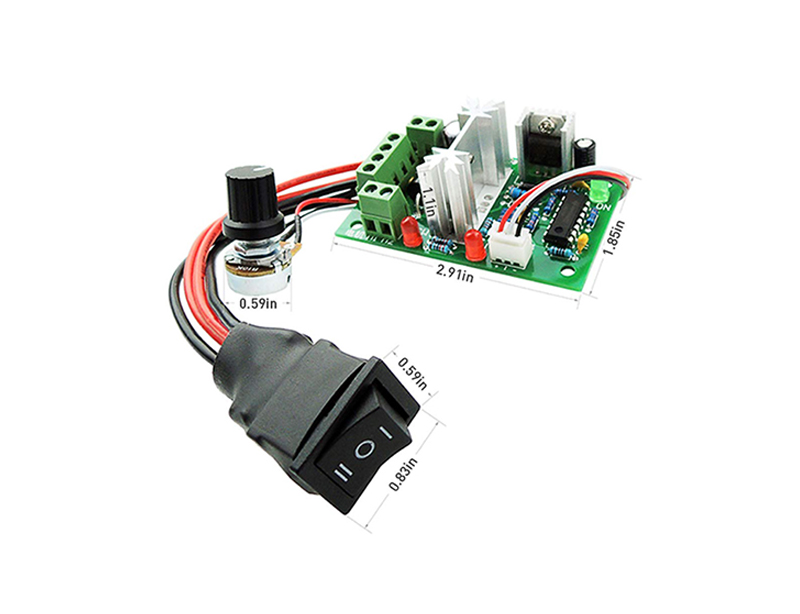

11.Size: 74 *47 *28MM
