Product Model: OKY3048

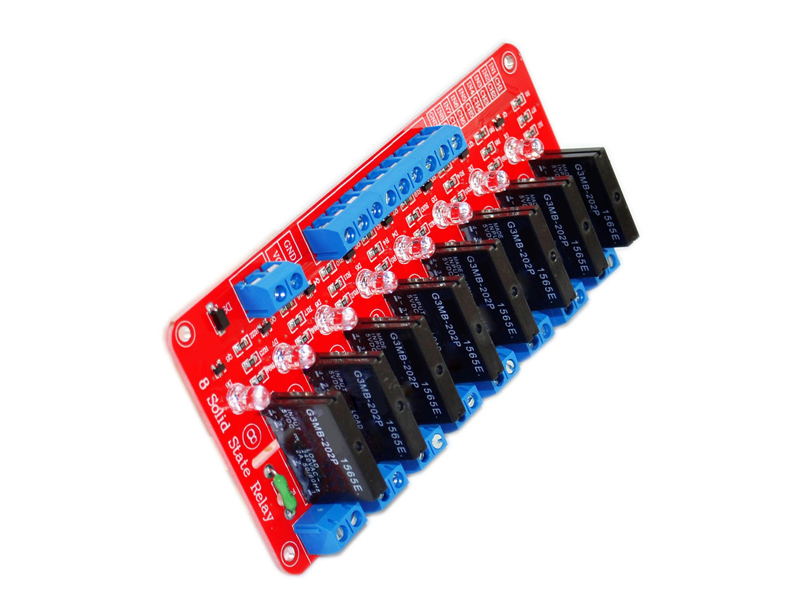

5V 8 Channel SSR Solid State Relay Module High Level Trigger 2A 240V

Product Description

1.Input power supply:5V DC (160MA).

2.Specification :”State of 0-2.5V low level relay ON;

State of 3-5V high level relay OFF”.

3.Interface:”DC+:connect to positive(according to the relay voltage supply)DC-:connect to negative CH relay module signal triggering side (high level trigger active)”.

4.Trigger voltage:low level 0-2.5V, high default 3.5-5V (in the case of voltage 12V trigger, you need a series resistance of a 5.1-6.8K before the trigger; 24V voltage trigger, you need a 15-22K resistors in series before the trigger, otherwise it will burn the chip).

5.Voltage:High or low voltage At Optional, the default  low voltage.

6.Static current:0mA .


8.Trigger current:2mA.


10.Pack Size:110*55*25mm.
