Description:
1.Adopting In-core IP5328P mobile power solution, four-layer immersion gold board, optimized layout and wiring.
2.Support for a variety of fast charge protocols, two-way 18W fast charge
3.Can support a total of 4 charging interfaces: 2 USB A output interfaces, 1 USBC interface, 1 Micro USB interface, 4 interfaces all support fast charge, 2 of which USBA ports support QC3.0, FCP, AFC, MTK, SFCP fast charge output, power up to 18W; support Samsung, BC1.2 agreement.
4.The USBC port supports USB PD bidirectional fast charge, and is compatible with FCP, AFC, SFCP fast charge input and QC3.0, FCP, AFC, MTK, SFCP fast charge output.
5.Micro USB supports FCP, AFC, SFCP fast charge input.
Feature:

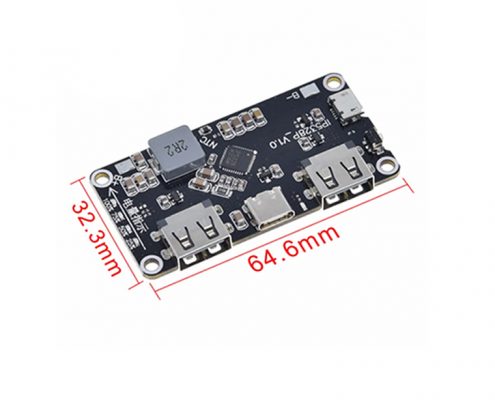

1.Size: 65MM * 32.5MM ultra-thin four-corner hole diameter 3MM
2.Output Interface: USBA + USBA + TYPE-C supports fast charge output (see the specification for the fast charge protocol)
3.Input Interface: MICRO + TYPE-C supports fast charge input (see the specification book for the fast charge protocol)
4.Battery Type: 3.7V battery (collection or 18650 lithium battery) connected in parallel in a single cell, the capacity is not limited, the larger the capacity, the longer the charge and discharge time. For safety, please add a protective plate.
5.The motherboard has positive and negative points. Reverse, connect anti-burn motherboard at your own risk.
6.Fast Charge Indication: input and output high-voltage fast charge indicator
7.Conversion Efficiency: 95% efficiency (different voltage power efficiency varies) See details in the specification
Press the key:
1.The key duration is longer than 60ms, but less than 2s, it is a short press action.
2.A short press will turn on the power indicator and boost output.
3.Pressing it for a long time 10s will reset the entire system, and the key action less than 30ms will not have any response.
Package Included:
1pc* 18650 Charger Circuit Board
