Product Model:OKYN401-16
6S 22.2V 10A 20A 30A 18650 Li-ion Lithium Battery Charger Protection Board
Product Description
1.Type: 6S 22.2V
2.Connection method: Common Port
Product Details
Product Description
Specification:
1.Type: 6S 22.2V
2.Connection method: Common Port
Discharge
1.Single battery over-discharge voltage: 2.7V±0.08V
2.Continuous working current: 10A/20A/30A
3.Instant protection current: 25A/50A/70A
4.Over current recovery conditions: charge recovery or disconnect load
5.Short-circuit recovery conditions: charge recovery or disconnect load
Charge
1.Single battery overcharge voltage: 4.25V±0.025V
2.Continuous charging current: 10A/20A/30A
3.Charge equalization voltage: 4.15V±0.025V
4.Charge equalization current：40mA
5.Charger voltage: 30V (recommended)
6.Charging over temperature protection: 50℃
7.Discharge over temperature protection: 70℃
8.Working power consumption: ≤30uA
9.Main circuit conduction internal resistance:≤50mΩ
10.Temperature range: -40 to 80℃
11.Appearance size: 96*34*2.8MM
Package included：
1pc *18650 Battery Charger Protection Board

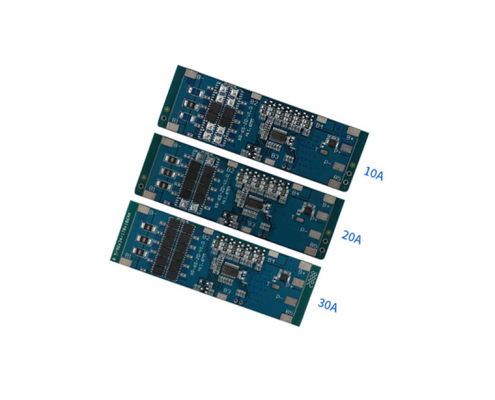

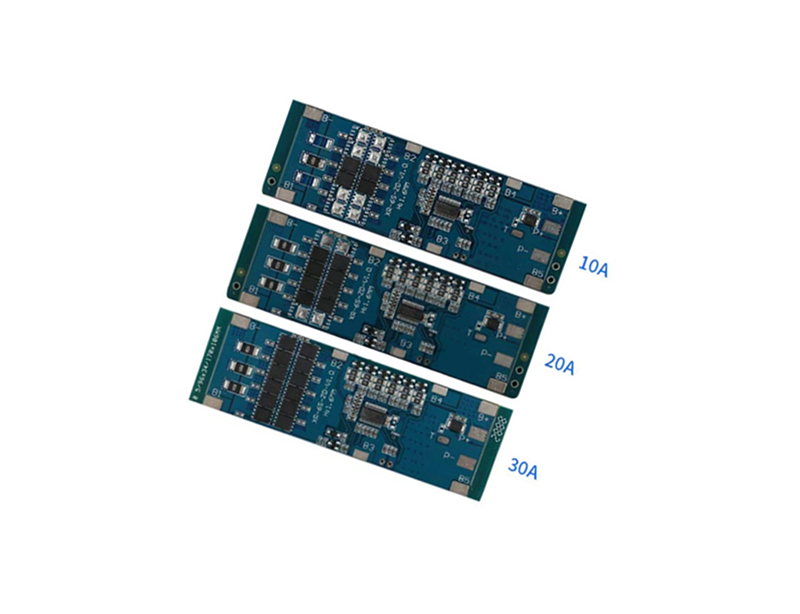

Tips:We have three specifications(10A,20A,30A) for this product.
